Forklift -Empty Container Handling and Stacking for Container Yard

Product Description

Product Description

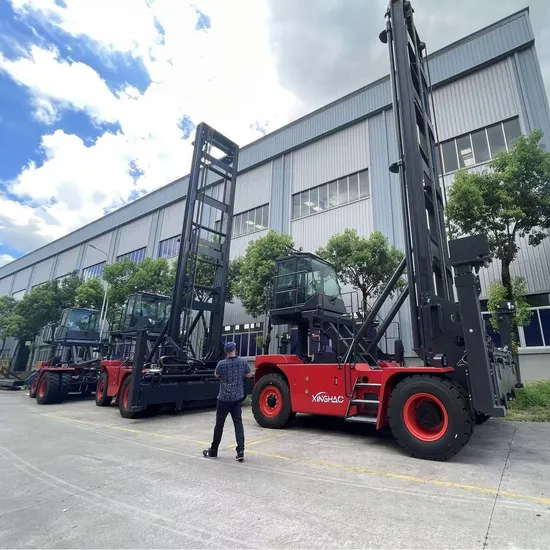

Reliable and Low Operational cost empty container handler.
When stacking up to 8 high double box the DG series of ECH's delivers market-leading strength and stability to ensure precise yet straightforward positioning of containers thanks to proven designs.
1), This reliable container handler optimizes the most intense high density empty container operations and can provide a low total cost of ownership thanks in part to fuel savings of up to 20% with load sensing and power on demand hydraulic system.
2), The mast, chassis and spreader are designed for maximum strength and stability providing two capacities of 8 or 9 tons.
3), Our ECH offering includes solutions for both single and double stacking at different lifting heights, with twist-lock and hook attachment options for load handling for a total five stacking configurations of up to 8+1 containers.
4), The twist-lock attachment enables easy and fast load levelling for single stacking, while the hook attachment allows double stacking for increased efficiency
DG Series 6/8-High Empty Container Handler Highlights:
1), Solid and stable chassis and an ultra-wide drive axle gives a 4.12m width for optimal lateral stability.
2), Class leading mast lift speeds ensure fast and efficient handling with eight different container engagement systems for single or double containers providing up to 9-high stacking capability.
3), The robust, high-performance power train has built in engine and transmission protection systems ensuring maximum reliability and a low total cost of ownership.
4), The 3 speed forward/3 speed reverse Hydrodynamic transmission has ZF seamless automatic gear shifting, a protective forward-reverse shifting lock-out, and a transmission protection device.
5), Cummins QSB6.7 Stage IIIA engine is available with 129 / max 164 KW @ 2.200 rpm.
6), The rear mounted "Veranda" cab provides truly excellent spaciousness and all-round visibility in the most demanding and intense empty container yards with clear overhead container view.
7), KESSLER oil-immersed disc brakes with cooling system ensure reliability and low cost of operation

Model		XINGHAO-ECH90-7
Power unit		Diesel
Operation type		Driver seated
Load capacity	(kg)	9000
Max. stacking layer		7
Lift speed, laden/unladen	m/s	0.55/0.60
Lowering speed, laden/unladen	m/s	0.60/0.60
Travel speed, laden/unladen	Km/h	26/28
Climbing ability, laden	%	38
Tractive force	kN	157.5
DIMENSIONS
Wheelbase	y (mm)	4520
Height of mast, lowered	h1 (mm)	11111
Tilt angle, forward/backward	α/β(/°)	3° 4°
Height of mast, extended	h4 (mm)	19244
Height of cabin	h6 (mm)	4326
Height, operator's seat	h7 (mm)	3226
Twist lock height, lowered	h13 (mm)	2290
Max. twistlock height	h3 (mm)	18642
Overall length	l1 (mm)	6850
Length to spreader face	l2 (mm)	6682
Overall width	b1/b2 (mm)	4120/2570
Width of spreader 20'/40'	b3 (mm)	6050/12150
Turning radius	Wa (mm)	6300
Wheelspan, front wheels	b10 (mm)	3280
Wheelspan, rear wheel	b11 (mm)	2171
WEIGHT
Service weight	kg	32280
Axle load with load, front/rear	kg	36610/10670
Axle load without load, front/rear	kg	22480/15800
ENGINE
Brand		Cummins
Type		QSM6.7
Cylinder no./displacement		6/6700 cm3
Rated power @ rated speed		164kw @ 2200rpm
Max. torque		949Nm@ 1500rpm
Rated current of alternator		100A
Battery		24V (2x12/110)
TRANSMISSION
Brand		ZF/3WG211 AUTO
Transmission		Auto-shift/interlock
Clutch type		Torque converter
Gear no.		3F/3R
BRAKE SYSTEM
Service brake		wet-disc
Parking brake		Brake enabled when power off
DRIVE AXLE
Brand		Kessler/Germany
Model		D81PL488-NLB
STEERING AXLE
Model		OMCI
Steering type-single cylinder		Double action cylinder
TYRES
Drive wheels		14.00-24 28PR
Steering wheels		14.00-24 28PR
Type		Pneumatic
Pressure		10 bar
Quantity, front/rear		4 , 2
