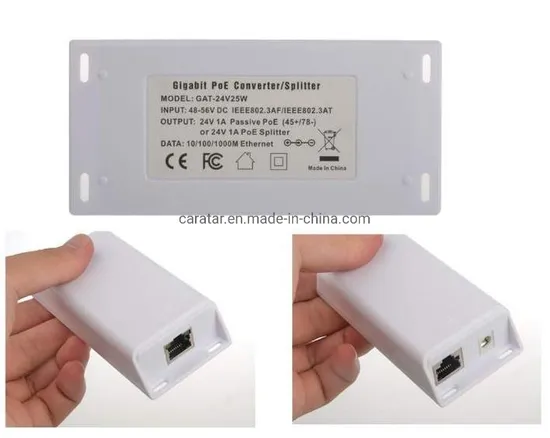

Poe Converter 802.3at Compatible Converter From Poe to 24V Passive, Gigabit Poe Splitter for Ubnt / Mikrotik with 24V25W Output

Product Description

This device allows power to be carried on 10/100/1000 networks with either 802.3af /802.3at or passive injectors and switches with a CAT5e, CAT6 or CAT7 Ethernet network cable.
It also can be used as POE Converter, this device will step the 48Volts down to 24 volts. 24V 25W PoE Converter/ 24V 25W PoE Splitter
RJ45 PoE Female Input: 42-57v DC IEEE 802.3af / IEEE 802.3at
Power and data source: RJ 45 male connector, 802.3af or 802.3at
Input Voltage Max: Up to 57 volts
Input Current at 48v: 650 ma input delivers . .1A out
Data Pins in and out: All 4 pairs for data are preserved
Data speeds: 10/100/1000 mbit/s
Power input mode A: 1&2 and 3&6 - either polarity
Power input mode B: 4&5 ( plus ) and 7&8 ( minus )
RJ45 Female Output: 24V 1A Passive PoE 4,5 (plus) 7,8 (minus)
or 24V 1A PoE Splitter
Power and data to load: RJ-45 female, 24v mode B power
DC connector: 2.1mm x 5.5mm
Power Output Mode B: 45 + and 78 - Isolated
Output Voltage Max load: 24v +- 2% at 1.04 amps 25 watts
Output Voltage no load: 24v
Operating Temperature: 0°C ~ 50°C
Size 120 x 50 x 22 mm (Din Rail Case Design - Wall mount)

Input	48-56V DC RJ45
Output	24V 1A Passive PoE 4,5 (plus) 7,8 (minus) or 24V 1A PoE Splitter
Date	1/2&3/6 or 1236, 4578
Power	1/2 V+ & 3/6 V- or 4/5 V+, 7/8 V-
Data In	POE switch/injector
Weight	100g of gigabit POE converter
Type	24V 25W gigabit POE converter or 24V 1A splitter
Ethernet Cable	TIA/EIA 568 Cat. 5/5e/6/6e
Data rate	10/100/1000Mbps Gigabit
Connector	RJ-45
Operating Temperature	-40°C ~ 70°C
Storage Temperature	-40°C~+70°C
Operating Humidity	10%~80%RH
Storage Humidity	5%~90%RH
Certification	CE, FCC, RoHS

---
