1600℃ Muffle furnace

Product Details

Product Description

Product Description

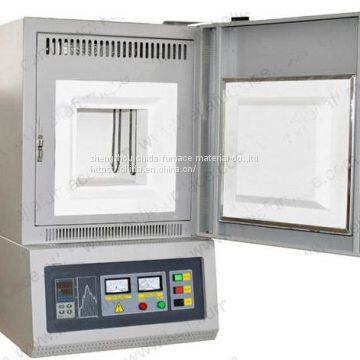

1600℃ Muffle furnace is a good-effective high temperature Laboratory furnace. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements with special design, and can be used up to 1700℃. These compact muffle furnaces are perfect for many applications in laboratory.
Features
1. Operation Temperature: 1600℃ (1700℃ for short time).
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber
ceramic insulation.
3. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
5. Power control with 30 or 50 segments programmable.

Chamber Size	150x150x150mm (6"x6"x6")
Working Temperature	1600℃ (continuous)
Maximum Temperature	1700℃ (for short time)
Temperature Control	30 steps programmable and PID automatic control
Heating Rate	0~15℃/min (suggestion: ≤10℃)
Temperature Accuracy	+/-1℃
Heating Element	Molybdenum Disilicide (MoSi2)
Working Voltage	AC 220V, Single Phase, 60/50 Hz (or according to your requirement)
Max. Power	4 KW
Outside Size	500x485x700mm
Net Weight	100Kg

---
