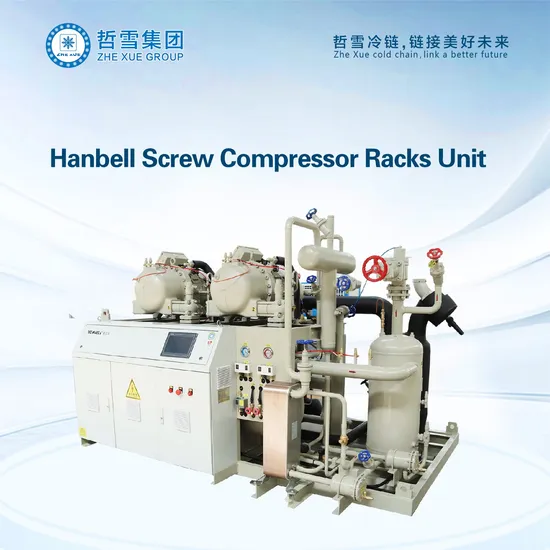

2 Compressor Racks 140HP Hanbell Screw Condensing Unit for Middle Temperature Cold Room

Product Description

140HP Air cooled condensing unit with 2 Hanbell screw compressor for middle temperature cold room
Zhexue brand MHZLG series products are applicable to the large size +20ºC~-20ºC room temperature refrigeration system, as the large size low temperature cold rooms, ice making, and blast freezing etc.,
Features:
1.Reliable system: famous brand compressor, PLC controller, high efficient oil separating system ,
2.German bitzer low temperature screw compressor, with the features of high efficiency, long service life, tiny vibration and low noise
3.this series products have a complete set of world famous components, protection devices for compressor wrong direction, over heat, over load, over discharging temperature, low oil level, over high/low pressure of oil flow etc.
4.the unit is matched with economizer, which can effectively increase the capacity for low temperature operation.
Model Description:
M BZ LG F 2-S 100 / J Y
M: MEOJILE products
BZ: compressor brad BZ: Bitzer
HZ: Hanbell
FS: FUSHENG
RF: RefComp
FR: Frascold
LG: Compressor type LG: screw compressor
BF:piston compressor
WX: scroll compressor
F: condenser type F: air cooled/ Evaporative condenser
W: water cooled
2: compressor qty
S: S: two stage compressor /: single compressor
100: HP
J : room temperature range H: (+5~+20ºC)
M:(-10~+5ºC)
L: (-30~-10ºC)
J: (-50~-30ºC)
Main Components :
Compressor, condenser , pressure controller, pressure oil gauge, pressure sensor,filter vat filter core, liquid angle valve , accumulator, suction check valve, oil separator , oil safety valve, oil pipe ball valve, oil cooler, oil cooler valves, filter, oil dry filter, filter core, solenoid valve, economizer, sight glass, expansion valve,touch screen, LP sensor , PLC controller, Siemens HMI.

Specification:

HANBELL screw compressor racks condensing unit for middle room temperature
Unit model			MHZLGF2- 60(M)LY	MHZLGF2- 80(M)LY	MHZLGF2- 100(M)LY	MHZLGF2- 120(M)LY	MHZLGF2- 140(M)LY	MHZLGF2- 160(M)LY
Refrigerant			R507(R404A)
Power supply			380V/3P/50HZ
Compressor		Model	RC2-100D-P	RC2-140D-P	RC2-180D-P	RC2-230D-P	RC2-260D-P	RC2-310D-P
		Qty	2	2	2	2	2	2
Evaporating Temperature			-30ºC~+10ºC
Evap.Temp	-10ºC	Coolingcapacity(KW)	122	168.6	221.6	296	318.6	397.2
	-10ºC	Power input(KW)	48.8	64.2	80.6	106.6	116.2	140.4
	-28ºC	Coolingcapacity(KW)	67.4	93.2	123	164.4	176.8	220.6
	-28ºC	Power input(KW)	45.6	60.2	75.6	99.8	108.8	131.6
Liquid pipe(mm)			Φ35	Φ35	Φ35	Φ42	Φ42	Φ42
Suction pipe(mm)			DN65	DN65	DN80	DN100	DN100	DN100
Oil separator outlet(mm)			DN50	DN50	DN50	DN65	DN65	DN65
Receiver inlet(mm)			DN40	DN40	DN40	DN50	DN50	DN50
Overall size		L(mm)	2600	2600	2600	2600	2600	3200
		W(mm)	1950	1950	1950	1950	1950	2100
		H(mm)	1800	1800	1800	1800	1800	2200
cooling capacity and powe input are calculated @35ºC condensing temperature, it is suitable for evaporative condenser.

HANBELL screw compressor racks condensing unit for middle room temperature
Unit model			MHZLGF2- 180(M)LY	MHZLGF2- 200(M)LY	MHZLGF2- 220(M)LY	MHZLGF2- 260(M)LY	MHZLGF2- 280(M)LY	MHZLGF2- 300(M)LY	MHZLGF- 320(M)LY
Refrigerant			R507(R404A)
Power supply			380V/3P/50HZ
Compressor		Model	RC2-340D-P	RC2-370D-P	RC2-410D-P	RC2-470D-P	RC2-510D-P	RC2-550D-P	RC2-580D-P
		Qty	2	2	2	2	2	2	2
Evaporating Temperature			-30ºC~+10ºC
Evap.Temp	-10ºC	Coolingcapacity(KW)	442.4	476.2	517.6	628.8	657.4	726.8	787.6
	-10ºC	Power input(KW)	152.8	166	182.8	219	224	252	269.6
	-28ºC	Coolingcapacity(KW)	246	265	287.8	394	412.6	455.8	493.8
	-28ºC	Power input(KW)	143.2	155.6	171.4	213	217.8	245.4	262.4
Liquid pipe(mm)			DN50	DN50	DN50	DN50	DN50	DN50	DN50
Suction pipe(mm)			DN150	DN150	DN150	DN150	DN150	DN150	DN150
Oil separator outlet(mm)			DN80	DN80	DN80	DN80	DN80	DN80	DN80
Receiver inlet(mm)			DN65	DN65	DN65	DN65	DN65	DN65	DN65
Overall size		L(mm)	3200	3200	3200	3400	3400	3400	3400
		W(mm)	2100	2100	2100	2100	2100	2100	2100
		H(mm)	2200	2200	2200	2200	2200	2200	2200
cooling capacity and powe input are calculated @35ºC condensing temperature, it is suitable for evaporative condenser.

---
