Hotman Cg45 Compound Grinder

Product Description

Hotman CG45 CNC Compound Grinder
Product Parameters

No.	Item	Configuration
Processing capacity
1	Grinding max. OD	φ400mm
2	Grinding wheel size	φ405*32~60*φ127mm
3	Max. OD grinding length	200mm
4	ID grinding range	φ6~200mm
5	Max. grinding depth	200mm
6	Max. damping length	260mm
7	Height from grinding wheel spindle to ground	1150mm
Workhead
8	Spindle speed	0~1000rpm
Drive motor
9	Y-axis cylindrical grinding wheel motor	6.5KW
10	X, Y, Z axis slide feed (servo motor)	2.5KW
11	Workhead drive motor (servo motor)	1.5KW
12	Z-axis internal grinding wheel electric spindle	18000~60000rpm
13	Hydraulic pump motor	100W
14	Coolant pump motor	0.37KW
Other
15	Hydraulic tank capacity	2L
16	Coolant tank capacity	200L
17	Machine size (L×W×H)	2300×2200×2000mm
18	G.W (appx.)	7000kg

No.	Special Accessories
1	Hydraulic chuck 6" /8" (medium solid, hollow)
2	Roller type workhead
3	Diaphragm chuck

Product Description

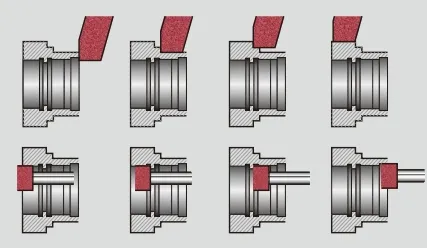

Hotman CG45 CNC Grinding Machine can realize one-time clamping and complete the integrated grinding of inner circle, inner cone, outer circle, outer cone and end face.
Provide high-precision and complex grinding solutions suitable for processing small and medium-sized workpieces. An automatic feeding and receiving system can be installed to meet the needs of industrial mass production.
The external/internal grinding modules can be flexibly combined as needed to adapt to different grinding form and process.
The control system is friendly and easy to learn, allowing for rapid workpiece grinding. Grinding wheel dressing is programmable, online measuring device can be installed.
Machine Structure
Grinding Wheel Head Combination:
1. Incline cylindrical grinding wheel+ Internal grinding wheel
2. Double cylindrical grinding wheel
3. Double bore grinding wheel
4. Straight cylindrical grinding wheel+ Internal hole grinding wheel
Special Accessories:
1. Online measurement device
2. Inner circle double spindle
3.Hydraulic three-jaw chuck (special configuration)
4. Spindle rotary table manual angle adjustment device
5. Grinding wheels and adapters
