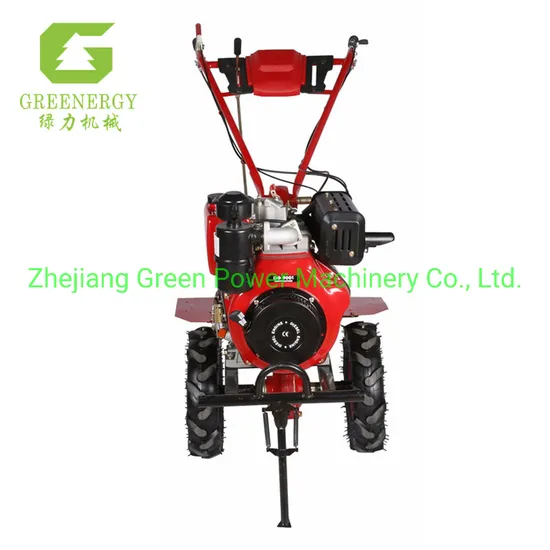

12HP D188f Diesel Rotary Cultivator Min Power Tiller

Product Description

Gasoline and Diesel Power Tiller
1. Gear box drive
2. Stronger powerful.
3. Useing for dry field and water feild
4. As usual attached one set dry land blade
5. Light weight, easy operation

Model	GP4.2Q	GP5.4Q	GP8.2Q	GP3.8C	GP4.0C	GP6.3C	GP7.5C
Engine Name	Gasoline			Diesel
Engine Model	170F (7HP)	177 (9HP)	188F (13HP)	D173F (5HP)	D178FA(E) (7HP)	D186FA(E) (10HP)	D188FA(E) (12HP)
Engine Type	1-cylinder, 4-stroke ,air-cooled			1-cylinder, 4-stroke ,air-cooled
Power	4.2kw	5.4kw	8.2kw	3.8kw	4.0kw	6.3kw	7.5kw
Speed	3600r/min	3600r/min	3600r/min	3600r/min	3600r/min	3600r/min	3600r/min
Starting mode	Recoil /Eletric
Fule volume	5.8L	5.6L	5.6L	2.5L	3.5L	5.5L	5.5L
Oil capacity	0.6L	0.8L	0.8L	0.75L	1.1L	1.6L	1.6L
Clutsh style	Plate cultch
Type of drive	Gear drive
Gear shifting	2 0 1 R
Cultivation width	60-110cm	70-110	70-110	60-110cm	70-110	70-110cm	70-110cm
Cultivation depth	10-25cm	10-25cm	10-25cm	10-25cm	10-25cm	10-25cm	10-25cm
Task speed	1-1.6km/h	1-1.6km/h	1-1.6km/h	1-1.6km/h	1-1.6km/h	1-1.6km/h	1-1.6km/h
Productivity	0.035-0.08hm2/h	0.05-0.1hm2/h	0.05-0.1hm2/h	0.035-0.08hm2/h	0.05-0.1hm2/h	0.05-0.1hm2/h	0.05-0.1hm2/h
Oil consumption	12-15kg/hm2	10-15kg/hm2	10-15kg/hm2	12-15kg/hm2	10-15kg/hm2	10-15kg/hm2	10-15kg/hm2
N.W.	80kg	105kg	115kg	80kg	115kg	125kg	125kg
G.W.	85kg	110kg	120kg	85kg	120kg	130kg	130kg
MEAS	84*51*63 cm	91*56*84 cm	91*56*84 cm	84*51*65 cm	91*56*84 cm	91*56*84 cm	91*56*84 cm
