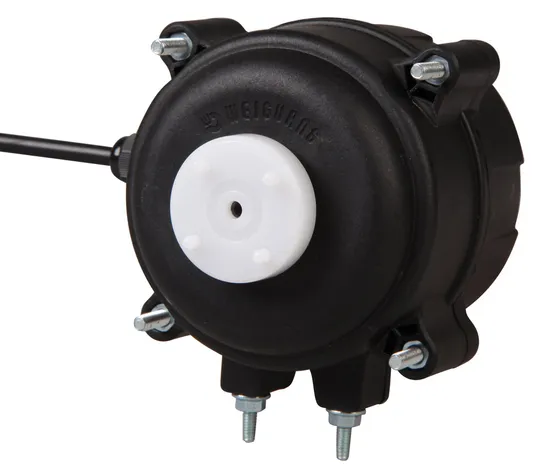

Ecm7112 High Energy Efficient Electric Brushless Motor for Refrigerator Parts

Product Description

ECM7712 Electronically commutated Motor, shaded pole motor, refrigeration parts


ECM7108
ECM7112
ECM7120
Voltage(V):110 or 220
Frequency(HZ):50/60
PRM:1300/1550
Rotation:CW/CCW
We have CE, CCC certificate

ECM Refrigerator Fan Motor
1.Updated YZF shaded pole motor
2.High efficient energy- saved
3.ECO Material
4.Widely used in cooler ,cabinet,refrigerator, and other similar products .
5.The motor has maintenance -free low -noisy ball bearing , which extend the life of the motor .

UL, CE Certificate
1, The new EC motor not only has the same install size with the original YZ series, but also combines Energy Saving Control System and Speed Regulation Switch. CE/VDE/UL authentication approved.
2, ECM Motor's efficiency of the EC motor has reached up to 60%, save about 80%
Energy compare to the previous SHADED POLE MOTOR.
3, The same installation, the better effects, 175 KWHof electricity is saved by the new EC motor every year.
4, Type brushless DC motor are widely applied to radiators, evaporators, condensing unit, ice machine and other refrigration equipments.

Application: This type motor is widely used in radiators,evaporators and other refridgration equipment.
Character: It has good starting,smooth operation,big power,low noise,long life.

1.Type of protection:IP65
2.Insulation type:B/F
3.Ball bearing or sleeve bearing
4.Protect feature: totally enclosed


Features:

Emphasizing on energy saving, environmental protection and high efficiency, EC motor are designed with advanced electronic control unit. The electronic control technology increase the motor efficiency greatly, while it maintains the similar external dimensions as the original YZF Shaded-pole motor. The accessories such as grid, fan blades, flange and bracket are the same as original YZF series', therefore EC motor could completely replace YZF series without any changes.Compare with previous products, EC motor could be 70% more efficient, reduce the electric consumption greatly. Meanwhile, with help from electric control technology, the heating of EC motor itself is very low, it could help the entire refrigeration system works more efficient and stable.

Motor Type :	ECM Motor / Fan Motor with fan blades
Mounting Dimensions :	100% Replacement of traditional shaded-pole motors
Voltage :	AC100V-120V;AC11OV-220V;AC160V-25OV;DC24V;DC48V
Output Power :	7W;12W; 25W
Rotation direction :	Single Rotation CCW & Reverse on start & Reverse on demand
Speed :	1 speed,2 speeds, 3 speeds, Stepless Speeds
Insulation class :	B/F
Working ambient temperature :	-40ºC ~50ºC
Mounting Option :	Grid,Flange,Bracket
Operating mode :	S1
Type of Protection :	IP65
Bearings :	Maintenance-free ball bearing
Motor protection :	Via electronics
Service life :	50000 hours
