High Frequency Oscillator Power Tube (BW1184J2, BW1185J2, YD1212, YD1202)

Product Description

YD1212,it is a high power triode with metal ceramic and water cooled, it is intended for use as a monofier amplification in radio frequency heating service, it is rugged mesh thoriated-tungsten, the anode dissipation (Max.) power 120kW, the anode working voltage (Max.)16.8kV, the working frequency (Max.) 100MHz. Electrical Characteristics

Filament Voltage		12.6V
Filament Current		380A
Mutual Conductance(Ia=10A)		≥190mA/V
Amplification Factor		40
Interelectrode Capacitances
Grid-Anode	60pF
Grid-Cathode	185pF
Cathode-Anode	3pF
Weight	15.6kg
Max Height	410mm
Max Diameter	¢191mm
Operating position	Vertical, anode up or down
Cooling
Stem		Forced air
Anode		Forced water
Water connection Screw nut.		1¼"
Max temperature at any point tube envelope		240ºC

Limit Working Conditions:

Frequency	100MHz
Anode Voltage.	16.8kV
Anode Current	25A
Anode input power	375kW
Anode Dissipation	120kW
Grid DC Voltage	-2000V
Grid DC Current
On Load	7A
No Load	8.5A
Grid Dissipation	3kW
Grid Current Impedance	10KΩ
Anode Dissipation	81.5kW

Typical Operation (Class C conditions):

Frequency	30MHz
Output Power	240kW
Anode DC Voltage	14kV
Anode DC Current	23.5A
Anode Input Power	329kW
Anode Dissipation	81.5kW
Anode Output Power	247.5kW
Grid DC Voltage	-810V
On Load Grid Current	6A
Grid Dissipation	2.6kW

Dimension(mm)

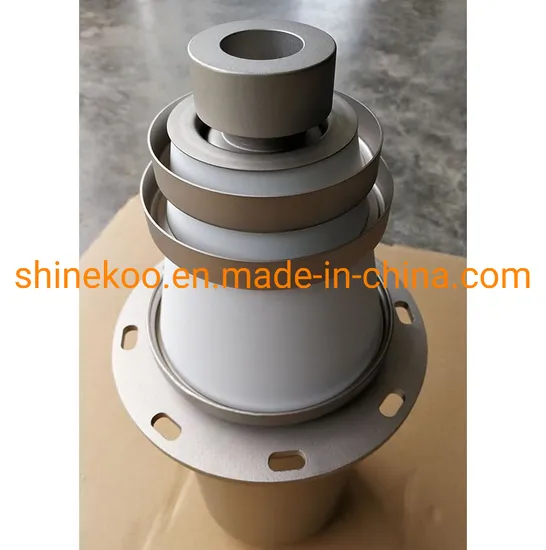

Product Picture
Product Description BW1185J2F(YD1212) is a metal ceramic power triode tube for laser machine designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This tube may be operated in CW or pulse modes.
For operation in pulse mode, the parameters depend on each equipment characteristics.
We manufacture the following all models.
FC-10FA, FC-10FT, FC-732F, FC-735F, FC-735FT, FC305F, FC311, FC312F, FC620F, FC620FT,
FD911S, FD003Z, FD-5S,
FC10FT, FC201F, FC307F, FC307FS, FC308C, FC310C, FC310F, FC502F, FC732F, FC734F, FC735F,
FU-33, FU-833A, 833A, 833C, FU-74F/RY-74B, FU-100F, FU-728F, FU-113F, FU-113FG, FU-998F, FU-5S, FU-62S, FU-610F, FU-610FA, FU-610S, FU-724F, FU-724S, FU-727F, FU-824F, FU-824FA, FU-832F, FU-834F, FU-834FA, FU-836F, FU-924F, FU-924FA, FU-928F, FU-101F/M, FU-101Z, FU-101C, FU-832C/FA, FU-832F/M, FU-917F/M, FU-307S, FU-74F, FU-250F, FU-252F, FU-946F, FU-947F FU611F, FU612F, FU613F, FU001F, FU104C, FU104Z, FU115F, FU116F, FU252F, FU615F, FU616C, FU617F, FU618F, FU720F, FU820C, FU820F, FU002F, FU617FT, FU-84F, FU-74F, FU-1608C, FU-1608F.
GU84B, GU74B, GU78B.
FM70FT,
ML8533, ML8536
YU191B, YU191C, YU-148, YU-108, 3CX4500H3, YU-148, 3CX6000A7, YU-191B,
YL1050, YL1057, YL1631, YL1420,
YD1202, YD1212, BW1184J2F, BW1185J2F, BW1184J, BW1185J, BW1184J2, BW1185J2, BW1608J2F, BW1608J.
CQK25-2, CQK50-2
3CX2500H3, 3CX2500A3/F3, 3CX3000A7, 3CX3000F7, 3CX1500D3, 3CX10000D3, 3CX10000A3/A7, 3CX10000H3, 3CX15000A3/A7, 3CX15000H3, 3CX20000H3, 3CX20000A7,
3CX800A7, 3CPX800A7, 3CX1500A7, 3CPX1500A7, 3CX5000A7, 3CPX5000A7,
YU-158, YC-236, YC-257, YC-179.
3CW5000F1/F3, 3CW40000H3, 3CW45000H3, 3CW20000A7, 3CW20000H3, 3CW20000H7, 3CW30000H3, 3CW30000A7, 3CW30000H7, 3CX2500A3, 3CX2500F3, 3CX2500H3, 3CX3000A7, 3CX1500A7, 3CW20000A7,
4CX250B, 4CX250R, 4CX250FG, 4CX800A/RY-74B, 4CX800A, 4CX350A, 4CX350F, 4CX1000A, 4CX1500B, 4CX3500A, 4CW1000A, 4CX1500A, 4CX3000A, 4CX5000A, 4CX5000R, 4CX7500A, 4CX10000D/J, 4CX15000A, 4CX20000C/D/E, 4CV100000C, 4CX250K, 4CX1500A, 4CX3000A, 4CX3500A, 4CX15000A, 4CV100000C, 4CX35000C, 4CX5000A
5CX1500A,
CTK12-4, CTK12-1, CTK15-2, CTK-25-4, CTK35-2, ITK12-1, ITK3-1, ITK5-1, ITK15-2, ITK30-2, ITK60-2, ITK70-2, ITK90-1, ITL2-1, ITL3-1, ITL5-1, ITL9-1, ITL12-1, ITL15-2, TH5-6, TH6-3A, TH382, TH382, TH584, TH338, TH331, TH537, TH527, TH327, TH582, TH558, TH610, TH375, TH576, TH373, TH328, TH347.
E3061, E3062, E3062E, E3069, E3130,
RS3060CL, RS3060CJ, RS3021CJ, RS3026CJ, RS3040CJ, RS3041CJ, RS3041CJ/CLX, RS3040CJ/CLX, RS3060CJC, RS3021, RS2048CJ, RS2048CJC, RS1034SK, RS1034SL, RS1072C, RS2054SK,
8560AS, 928F/836F, 8741, 7T85, 7T69, 8F75R, 7F71RA, 8F68R
6T51, 6T58RA, 7T62R, 7T62RE, 7T85RB, FU-947F, 7T69RB, 7T84RB, 7T69RB, 8T25RA, 8T85B, 8T85RB, 8T87RB, 8F76R, 8T69JB,
SK300 Socket, SK1300 Socket, SK2210 Socket, SK184 Socket. Certifications
