Laboratory Use Multi Function Process Calibrator

Product Description

Product Description
SPMK518 thermal instrument calibrator Process Calibrator Main features :
1. Measurement and output are completely isolated to avoid interference, which can be conducted simultaneously;2. It can measure voltage, current, resistance, frequency, pulse and switching (on-off). The temperature also can be measured by using RTD or thermocouple;3. It can output signals of voltage, current, resistance, frequency, pulse, etc;4.It can simulate measurement and output for 13 kinds of thermocouples and provide cold junction compensation (manual mode and automatic mode are optional);5. It can simulate measurement and output for 11 kinds of RTD and custom RTD (12 groups at most);
6. It can provide a DC24V power supply isolated from measurement and output;7. It can support snapshot storage function;
It can support step, program and other output modes;8. Built-in HART manual operator (applicable to SPMK518) can perform basic information management of HART instrument, range migration as well as calibration and maintenance of zero point, full-scale calibration and other function devices;
9. It can be connected with SDP modular intelligent digital pressure calibrator to perform pressure measurement (applicable to SPMK518 and SPMK517);10. Advanced automatic cold junction compensation technology: built-in cold junction thermal insulation module for fast tracking temperature change.
Product ParametersElectrical Specifications-Measurement Accuracy of SPMK518 Process Calibrator

Signal	Range	Accuracy	Resolution
Current	(-30-30)mA	±(0.01%RD+0.005%F.S)	0.1uA
Voltage	(-30-30)V	±(0.01%RD+0.005%F.S)	0.1mV
mV	(-75-75)mV	±(0.01%RD+0.005%F.S)	0.1uV
R-3W	(0-400)Ω (0-4000)Ω	±(0.02%RD+0.005%F.S)	1mΩ 10mΩ
R-4W	(0-400)Ω (0-4000)Ω	±(0.01%RD+0.005%F.S)	1mΩ 10mΩ
Frequency	(1-50000)Hz	±(0.005%RD+0.002%F.S)	1Hz
Pulse	0-999999	±1pcs	1
Limit Switch	If the switch has detective voltage, range is (3-24)V
Thermocouple	K E J T N R S B C D G L U
RTD	Pt1000(385),Pt500(385),Pt100(385),Pt100(3916),Pt100(3926),Pt10(385) Cu10(427),Cu50(428),Cu100(428),Ni120(672),Ni100(618)

Electrical Specifications-Source Accuracy of SPMK518 Process Calibrator

Signal	Range	Accuracy	Resolution
Current	(0-22)mA	±(0.02%RD+0.005%F.S)	0.1uA
Voltage	(0-12)V	±(0.02%RD+0.005%F.S)	0.1mV
mV	(-10-100)mV	±(0.02%RD+0.005%F.S)	1uV
Resistance	(0-400)Ω	±(0.02%RD+0.005%F.S)	1mΩ
	(400-4000)Ω	±(0.03%RD+0.01%F.S)	10mΩ
Frequency	(0-50000)Hz	±(0.005%RD+0.002%F.S)	0.1Hz
Pulse	0-999999	±1pcs	1
DC24V	24.0±0.5V	N/A	N/A
Simulating Thermocouple	K E J T N R S B C D G L U
Simulating RTD	Pt1000(385),Pt500(385),Pt100(385),Pt100(3916),Pt100(3926),Pt10(385) Cu10(427),Cu50(428),Cu100(428),Ni120(672),Ni100(618)

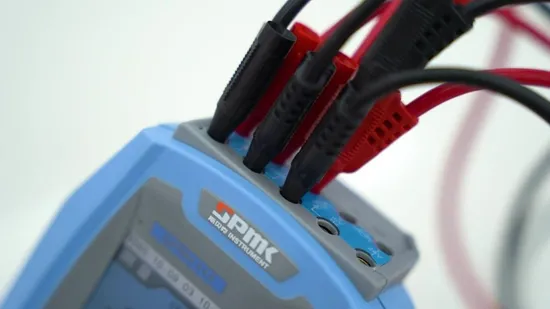

Detailed Photos
Company Profile
Beijing Spake Technology Co., Ltd is one of the most professional manufacturers of calibration instruments in China with 24 years 'experience. We have been successfully manufactured Pressure/ Temperature calibration instruments such as high accuracy Digital Pressure Gauge, Pressure Calibrator, Pressure Calibration Comparator Pumps as well as Process Calibrator and Temperature Calibrator Dry Blocks. So far, "SPMK" brand calibration instruments have been used in over 100 countries worldwide and enjoy good reputation.
With the corporate philosophy of "Accurate Calibration, Perfect Service" going forward, we will continue developinghighqualitycalibrationinstrumentswiththebestservicetomoreandmore customers worldwide.
