New Type Rubber Tube Extruder, Hot Feed Rubber Extruder

Product Description

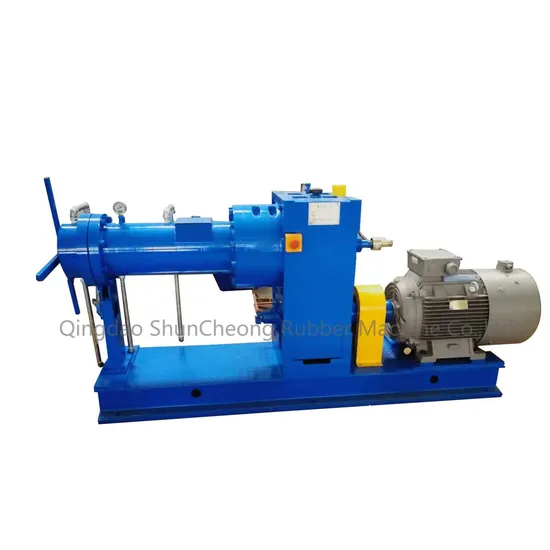

New Type Rubber Tube Extruder, Hot Feed Rubber Extruder-XJ-150
1. The Rubber Extruder Machine is used for extruding half-finished rubber products such as tire tread, rubber pipe, inner tube, cable and feeding rubber, etc.
2. The machine is heat-feed and single screw extruder. The rotation speed could be changed. With the head piece changing. We can get different filtering and rubber-covering of press plate of semi-product for constant outline. So the machine has many uses.
3. Our main products includes: Rubber product equipment, reclaimed rubber equipment, bias truck tyres equipment etc. We also have rubber mixing equipments such as Banburying Machine, Rubber Mixing Machine, Rubber Crusher, Refiner, Rubber Cutting Machine; Rolling equipments such as Calenders with two/three/four high mills, Linkage line, Placemat Finisher; Vulcanizing equipments such as Vulcanizing Press, Conveyer Forming Machine, Tyre Vulcanizer, Solid Tyre Vulcanizer, Flap Curing Press, Inner Tube Curing Press;
4. We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.
5. Qingdao Shun Cheong Machinery Co., Ltd. Your trusted partner

Type	XJ-65	XJ-115B	XJ-120	XJ-150	XJ-200	XJ-250
Forms of screw and screw thread	Double-head equal-depth convergent type	Double-head convergent type	Double-head convergent type	Double-head unequal-depth convergent type	Double-head convergent type	Double-head convergent type
Screw diameter (mm)	65	115	120	150	200	250
Length-diameter ratio of screw(L/D)	4	4.8	4.6	4.43	4.35	4.5
Compression ratio		1.3		1.34
Rotary speed pf screw r/min	5.2-52	5.4-54	5.6-55.6	20-26	22.4-67.2	19.7-59.1
Motor power KW	Electromagnetic speed 7.5KW	Electromagnetic speed 22KW	Electromagnetic speed 22KW	Frequency control 55KW/ Motor commutator 8.3-55KW	25-75Motor commutator	Motor commutator 33.3-100
Production capacity kg/h	50-80	100-420	100-450	700-1200	1500-2200	2000-3200
Strean pressure (Mpa)	0.2-0.3	0.4-0.6	0.2-0.4	0.6	0.6-0.8	0.6-0.8
Cooling water pressure (Mpa)	0.2-0.3	0.2-0.3	0.2-0.4	0.2-0.3	0.2-0.3	0.2-0.3
Overall:Length×Width×Height(mm)	1750×550×1100	2390×760×1450	2427×750×1330	3411×814×1470	4564×1800×1750	4950×1150×1483

Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
FAQ
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.
Before leaving factory, this plate vulcanizing press needs to pass 24 hours' pressure test, pressure maintaining to test the bearing of the hydro-cylinder and piston stroke and guarantee no oil leakage and seeping to avoid unnecessary quality problems.

---
