US$48,000.00-200,000.00
|
1 set
(MOQ)
|
Basic Info.
Certification
CE, ISO 9001: 2015
Suitable for
Alloy, Sapphire, Quartz Crystal, Silicon, Magnets
Maximum Worksize
160X160X690mm
Maximum Running Speed
1000m/Min
Test Cut
Provide Test Cut Service
Dimension
4000X1900X2600mm
Transport Package
Wooden Case
Production Capacity
350sets/Year
Product Description
Product Description

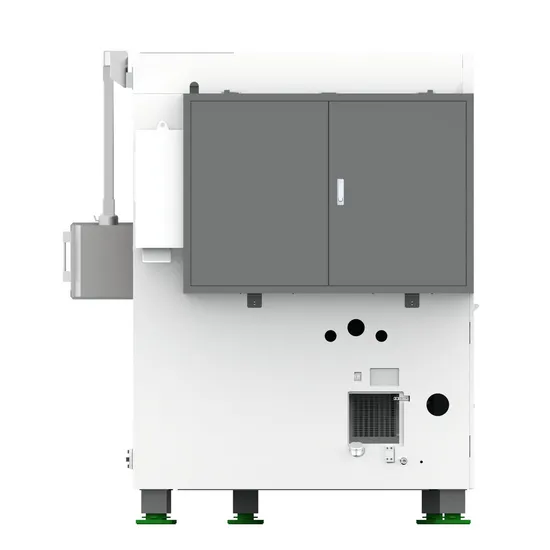

CX120A Multi-wire Saw
CX120A Multi-wire Saw is mainly applied to straight slicing of Rare Earth Permanent Magnet, Quartz Crystal, Optical Glass, Precious Metal and other hard and brittle materials. The unique design can achieve the replacement of internal circle cutter.
Product Features
>Double Workstation
The machine adopts double-station design and is able to cut two plates materials at the same time.
>Stable Frame
The whole casting structure has high damping coefficient and excellent vibration damping performance.
>Optimized Location System
The rollers and wire spools adopt cone-positioned structure with high accuracy and high rigidity to control wire web shaking.
>Flexible Cutting
The left and right slide table on the workbench can be independently moved back and forth, and the left and right sides can cut products of different thicknesses.
>Flexible Wire Winding
Achieve the cutting of products within 170mm through switching wire winding mode.
>Convenient Wire Winding
The wire pay-off spool adopts the standard universal spool (PV600 reinforced I-wheel), and it's no need to rewind.
>Wire break memory system.
Cut Samples
Product Parameters
Detail | Parameter |
Model | CX120A |
Maximum work size | 160×690mm(Double workbench) |
Material plate qty | 4 |
Workbench qty | 2 |
Wire winding space | 85/170mm |
Wire winding workbench qty | 16/14 |
Roller out diameter *Workable width | (φ130±10mm)x15x3rollers |
Wire diameter | φ0.12mm-φ0.25mm |
Wire spool storage | 40km(φ0.25mm) |
Maximum running speed | Max 1000m/min |
Travel of table lifting | 220mm |
Travel of table translation | 200mm |
Cutting method | Vertically upward movement |
Wire feed speed | 0.1~99.9mm/min |
Cutting Fluid | Water-based cutting fluid or cutting oil |
Fluid Storage | 800L |
Fluid Flow rate | 200*2L/min |
Power supply | Three-phase 380V 50Hz |
Power | 26Kw |
Air supply | Adopting water-based cutting fluid, the air pressure is more than 0.4MPa. |
Size L*W*H | 4000mm*1900mm*2600mm |
Weight | 8500Kg |
About Us
FAQ
1. What Materials Could The Multi-Wire Saws Cut?
Our multi-wire saws can cut all kinds of hard and brittle materials such as Sapphire, Quartz Crystal, Optical Glass, Magnets, Ceramics, Silicon Wafers, Silicon Carbide, Precious Metal, etc.
2. What's The Size Range Of The Cut Product?
The maximum diameter of the cut material is up to 1000mm.
The minimum thickness of the wafers after cutting is 0.1mm.
3. What's The Cut Accuracy Of Multi-Wire Saws?
±10μm. It's subject to the cut material, please consult us for actual data.
4. Which Countries The Equipments Have Been Exported To?
The USA, UK, Russia, Japan, Brazil, Korea, India, Singapore, Taiwan of CHINA.
>>
