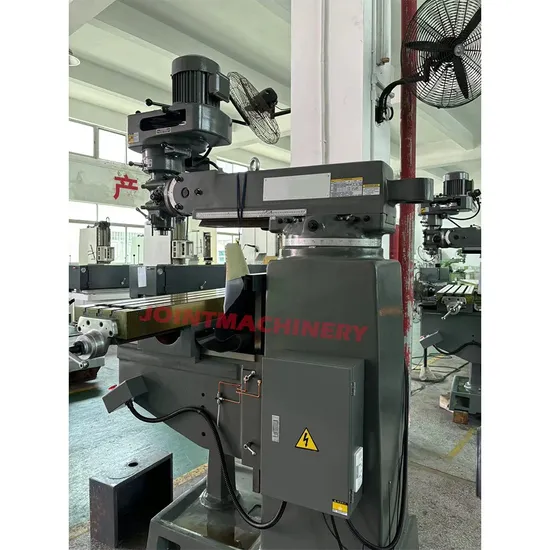

3 Axis Milling Machine Knee Type Metal Milling Machine Tool for Professional Milling Projects

Product Description

Crafted with high-quality castings and precision processing, our Metal Milling Machine Tool epitomizes excellence in precision and stability for professional milling projects.
√ Unmatched spindle tolerance: 0.002mm, assuring precision in every project.
√ Double precision scraping technique ensures superior processing quality and precision.
√ Perfectly suited for electronic parts, including holes, slots, frames, and mold processing.
√ Features a Taiwan original milling head and Japan's NSK P4 precision spindle bearing for optimal performance.
1. WORKTABLE
Combines ultra-audio quenching, precision grinding, and scraping guide. An optional rotary table enhances versatility.
2. TURRET MILLING HEAD
The turret milling head swivels 45° forward-backward and rotates 90° left-right, enabling effortless milling of special angles.
3. SPINDLE
Choose from high precision R8/NT30/NT40 spindles, with a spindle runout of just 0.003mm.
4. X/Y/Z AUTO FEED
X/Y axis auto-feed and Z axis electric lifting significantly boost machining efficiency.
5. DRO
Customizable DRO: opt for a 2-axis or 3-axis DRO based on your specific needs.
3 Axis Milling Machine Knee Type Metal Milling Machine Tool for Professional Milling Projects

Model				5VA/5VB
Table size			mm	1270*254*90/1470*305*90
Travel		X axis	mm	680/810
		Y axis	mm	415
		Z axis	mm	420
Travel of spindle quill			mm	150
Maximum distance from spindle nose to table			mm	620
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	66-4530 (16 grade)
		60HZ	rpm	80-5440 (16-grade)
	Rotation speed (Variable speed milling head)	50HZ	rpm	50-3500
		60HZ	rpm	60-4200
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			NT40
	Rated power		HP	5HP
Tilt Angle			Forward and backward	0°/±45°
			Left and Right	±90°
Dimension			mm	1500*1700*2450/1500*1900*2450
Weight			kg	2000/2100

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

---
