High Accuracy CNC Lathe with Range From 0.1mm to 7mm

Product Description

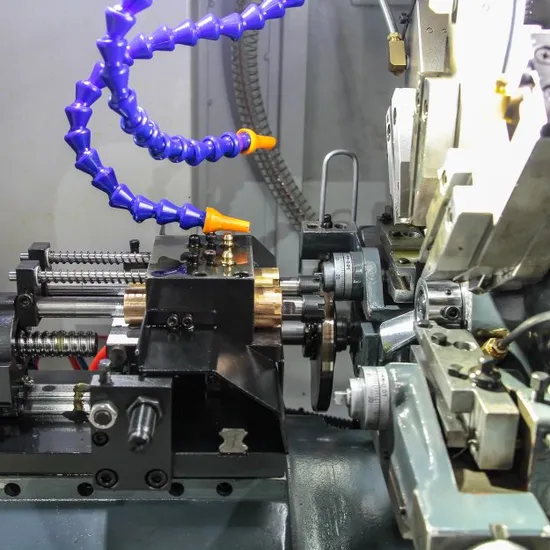

CK1101II CNC longitudinal cutting automatic lathe


CK1101II series CNC CNC longitudinal cutting automatic lathe, specialized in high precision machining of small parts.Automatic cycle processing of cold drawn rod material (usually within 0.02mm, 0.2mm / 1000mm, and the accuracy of the rod shall not be lower than the accuracy of the processed parts).Can complete the shaft parts of the car outer circle, front drilling, front tapping, front boring, car thread, cutting groove, horizontal drilling, milling side, milling groove, radial tapping, cutting and other processes.
The machine tool is equipped with feeder interface, connected with the feeder, realize automatic feeding.The machine spindle adopts built-in spindle motor structure (electric spindle), the bearing adopts imported high-precision centripetal thrust angle contact ball bearing, with high rigidity and high stability; the motor adopts FANUC built-in spindle motor, short rise and deceleration time, Cs axis control and separation function; compact structure, stable operation, low vibration and low noise.
The machine tool adopts the row blade frame, spindle box movement, can be cut without center frame (no guide sleeve); when the full stroke rotary center frame, the slender shaft parts can be processed with high precision.The machine tool has the characteristics of high accuracy, compact structure, small footprint, convenient operation and beautiful shape.
Specification, parameters and accuracy indicators

Description	Unit	CK1101II	Note
Max.bar.diameter	mm	Φ1
Max.cutting length	mm	30
Spindie rpm	r/min	16000
Number of tools	The	7
Main motor power	KW	0.5/0.75
Repeatability	mm	0.002
System/controlled axes		FANUC 0i-TF Plus/3 Axis
Rapid feed rate	m/min	20
Overall dimension	mm	1890×940×1750
Weight	kg	~1100

COMPANY PROFILE
Guangzhou Xinzhao Zhikong Precision Manufacturing Co., Ltd. is a professional precision lathe manufacturer and service provider, committed to small diameter shaft, pinhole parts processing solutions. KC series CAM CNC machine tools are the industry's first products developed and manufactured by the company, with a number of invention patents.
Guangzhou Xinzhao has advanced development and technical advantages in the field of probe and insert machine products, on-site tooling operations including axial and radial milling, drilling and tapping. In all kinds of Guangzhou Xinzhao CNC lathes have on-site processing applications.
Guangzhou Xinzhao is a responsible company with worldwide sales, systems developed in Taiwan and manufactured in China, known for providing matching support to customers, employees and the environment.
Our ultimate goal is to be altruistic and win-win, to become a professional partner to provide intelligent manufacturing solutions to serve the industry and positively impact the world.
Q & A
1.Who are you?
We are Guangzhou Xinzhao Zhikong Precision Manufacturing Co., Ltd.,which has two production bases in China.
We are a professional precision lathe manufacturer and service provider, committed to small diameter shaft, pinhole parts processing solutions.
KC series CAM CNC machine tools are the industry's first products developed and manufactured by our company, with a number of invention patents.
Welcome to visit our factory.
2.What's the delivery/lead time of your machines?
One month in the low season and three months in the high season
3.What's the acceptable payment terms?
We can accept payment by T/T
4.What about installation and commissioning?
This quotation does not include local installation and debugging. We offer professional online guidance.
5. How about the warranty?
The machine is guaranteed for 12 months from bill of lading date. Man-made damage can not be guaranteed.

---
