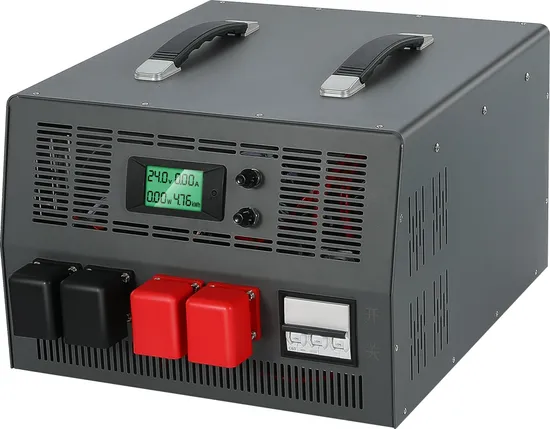

Sp-15000-110 15000W 110V CE RoHS 1 Years Warranty AC to DC Single Output SMPS Switching Power Supply with Pfc

Product Description

SP-15000-110 15000W 110V CE Rohs 1 Years Warranty Ac to Dc Single Output Smps Switching Power Supply with PFC Product Description Notice:
1,Input Voltage 90V~264V
2,Protection type: short circuit/over current/over voltage/over temperature
3,Power factor PF>0.99
4,Work efficiency up to 93%
5,485 Communication Control

Product Parameters

Model		SP-15000-24	SP-15000-36	SP-15000-48		SP-15000-60	SP-15000-110	SP-15000-220
OUTPUT	DC voltage	24V	36V	48V		60V	110V	220V
	Rated current	625A	416A	312A		250A	136A	68A
	Current range	0 - 6 2 5 A	0 - 416A	0 - 312A		0 - 250A	0 - 136A	0 - 68A
	Rated power	15000W
	Ripple & Roise	500mV	500mV	600mV		600mV	1000mV	1500mV
	Constant current range	12 - 24V	18 - 36V	24 - 48V		30 - 60V	55 - 110V	110 - 220V
	Voltage tolerance	±1.0%
	Line regulation	±1.0%
	Load regulation	±1.0%
	Setup risetime	1500mS ,700mS/ 230VAC( Full load)
INPUT	Voltage range	95- 190 VAC(output current 50%) , 195- 265 VAC(output current 10 0%)
	Frequency range	45Hz - 65Hz
	Power factor	PF>=0 .99/ 230VAC( Full load)
	Efficiency( MAX)	90 %	91.5 %	92 %		92 %	92.5 %	93 %
	AC Current	<110A
	Leakage current	<3 .0mA / 240VAC
PROTECTION	Short curcuit	Enter the constant current and the voltage is less than 10% of the rated voltage, turn off and lock the output after 1 second, and resume after restart
	Over current	The user can set a delay of 5 seconds after the current value is turned off, and the output can be restored after restart
	Over voltage	The user can set the overvoltage value to turn off the output voltage, and resume after restart
	Over temperature	Turn off the output and automatically recover or restart after the temperature drops
FUNCTION	Output voltage adjustment	0 - 26.4V	0 - 39.6V	0 - 52.8V		0 - 66V	0 - 121V	0 - 242V
	Output constant current adjustment	0 - 740A	0 - 500A	0 - 375A		0 - 300A	0 - 163.6A	0 - 81.8A
	485 communication	MODBUS Communication protocol
	Isolating auxiliary power supply	12V 0.5A ( Need to be customized)
	Output remote control switch	Default power on, high power off(5V-12V) ( Need to be customized)
	Alarm output	Power normal signal ( Dry contact <= 36 V , 0 . 1A )( Need to be customized)
ENVIRONMENT	Working TEMP.	-20 - +60ºC
	Working humidity	-20 - 90% RHnon-condensing
	Storage TEMP. and humidity	-40 - +85ºC, 10 - 95% RH non-condensing
	Vibration	10 - 500Hz, 2G 10mins/T, X ,Y ,Zaxis 60 minutes each
SAFETY& EMC	Isolation resistance	Input-output: 100 Mhms/500 VDC/ 25 ºC/70% RH
	Withstand voltage	I/ P-O/ P : 2KVAC I/ P- FG:2KVAC O/ P- FG:0 . 5KVAC
OTHERS	Dimension	455 *345 * 251mm(L*W * H)
	Net weight	22 KG
Remark	1 . All parameters NOT specially mentioned are measured at 23 0 VAC input, rated load and 25 ºC of ambient temperature. 2 . Ripple &noise are measured at 20 MHz of bandwidth by using a 12 " twisted pair-wire terminated with a 0 . 1uf &47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. If the input voltage is low, the output needs to be derated. For details, see the static characteristic diagram. 5. Length of setup time is measured at cold first start,Turning ON/OFF the power supply may lead to increase of the setup time.

Company Profile Packaging & Shipping Application
Certifications FAQ Q1:Are you a factory or trading company?
A1:We are factory.
Q2:Why choose us?
A2:Our factory has been in operation for 17 years,We have enough experience to meet your needs.
Q3:How can I get the samples?
A3:You can pay for the sample this time, and we will refund the sample fee for the next batch order.
Q4:How to order?
A4:Please contact us online to send you a proforma invoice or send us your purchase order by email.
Q5:How many years warranty of your products?
A5: 1 years

---
