Pet Water Bottles Making Machine

US$5,000.00-12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GMS-2L
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Computerized
Speed
800bph
Transport Package
Wooden Case
Specification
2cavity
Trademark
GM
Origin
China
HS Code
8422301090
Production Capacity
200sets/Year

Product Description


GMS-800:
Product max volume:2L
Suitable for blowing bottles between 150ml to 2000ml
Necessary auxiliary devices:High pressure air compressor, Air filter.

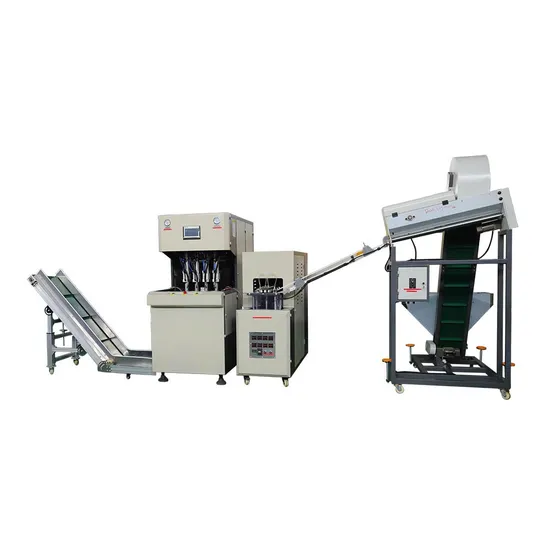

Semi-automatic blow moulding machine Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It's the revolutionary product of industrial control. High responsivenesspneumatic components,action timely and precisely Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing. Technology advantage: Special design,high rigid compound die structure Wide adaptability, suitable for every type mould thickness Adjust convenience No mould rolling out More energy conservation,no need much air supply High burnish principal axis, with very precise polishing, light action and low noise. Short mould stroke,quick action All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100% Hig dead-weigh, ensure the steady during the operation Main parameters :

Main machine (blowert + oven)
Model type Tech data
Product Spec Max. product volume(L/cav) 2
Max. preform neck size(mm) 100
Max. product diameter(mm) 180
Max. product height (mm) 300
Cavities 2
Blow molding part Die force (KN) 100
Die stroke (mm) 270
Max. mould size(mm) 390*345
Mould thickness Adjustable
Mould spacing(mm)
Max. pulling stroke(mm) 400
Operation pressure(Mpa) 0.8-1.0
Operation air pressure consumption
(1tr/min)
200
Blow pressure(Mpa) 1.2-2.8
Blow air pressure consumption (1tr/min) 300
Output(pcs/h) 800-1000
Machine size(LxWxH)(m) 1.46*0.58*1.8
Machine weight(KG) 650
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 16
Oven Size (LxWxH) 1.60*0.55*1.40
Oven weight (KG) 200
