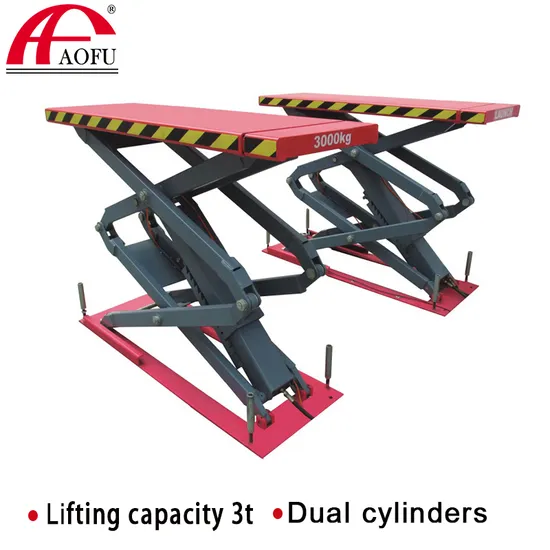

Hydraulic Double Cylinder Scissor Platform Car Lift

US$3,200.00-3,900.00 1 Set (MOQ)

Basic Info.

Model NO.
AF3000
Type
Double Cylinder Hydraulic Lift
Lifting Capacity
3.5T
Driving Type
Mechanical
Certification
CE, ISO
Driving Motor Number of Mechanical Lift
1
Double Cylinder Lift Type
Planer-type
Shearing Lift Type
Small Shear Type
Condition
New
Brand
Aofu
Design
Scissor
Color
Customised
Power
3kw
Power Supply
380V/220V
Operation Voltage
24V
Air Pressure
0.4-0.6MPa
Length
4500mm
Width
620mm
Height
360mm
Lift Height
1850mm
Secondary Lift
450mm
Weight
1980kg
Lift Time
60s
Descent Time
50s
Safety Lock
Mechanical
Drive
Hydraulic
Transport Package
Export Package
Specification
480CMX62CMX36CM
Trademark
AOFU
Origin
China
HS Code
8425499000
Production Capacity
30000/Set

Packaging & Delivery

Package Size
201.00cm * 100.00cm * 100.00cm
Package Gross Weight
600.000kg

Product Description

Product Parameters
1. Adopt underground structure, occupying a small space
2. Electro-pneumatic lock, safe and reliable
3. The system also adopts advanced integrated valve plate and inlet seals
4. When the power is off, the car can also be manually lowered and driven out
5. Conform to ISO9001, CE standard

Type Scissor Lift
Model AF3000
Capacity 3T
Lifting Height 2070mm
Width 520mm
Motor Power 2.2kw
Input Voltage 380v/220v
Certification CE,ISO9001
Warranty 1 Year

Q: Why Choose Qingdao Aofu?
A:Qingdao Aofu Machinery Co., Ltd. is located in the beautiful coastal Qingdao,founded in 1978 . We are a professional manufacturer of auto lifts. Our main products are heavy duty lifts ,lifting platforms, pit lifts,2-post lifts,4-post lifts,etc. The company have passed the evaluation of ISO9001 Quality Management System and been CE marked .With 38 years' no accident history ,we definitely guarantee you good lifts with reasonable prices.
Q:What is the lead time for your products?
A: The lead time for our products varies depending on the product type and specifications, as well as the quantity of your order. Please contact us for the specific lead time for your order.
Q:Can you provide OEM or ODM services?
A: Yes, we can provide OEM or ODM services according to customer needs. If you need to order OEM or ODM products, please contact us and we will provide you with a quote and delivery time based on your specific requirements.
Q:Do you have a minimum order amount?
A: Yes, we have a minimum order amount for our products. The specific minimum order amount depends on the product type and specifications. Please contact us to discuss the minimum order amount for your order.
Q:What is your warranty policy for your products?
A: We offer a warranty policy for our products. The specific warranty period and coverage depends on the product type and specifications. Please contact us to discuss the warranty policy for your order.
Q:Can you provide technical support for your products?
A: Yes, we can provide technical support for our products. Please contact us for technical support or any other questions you may have about our products. We are always here to help.
