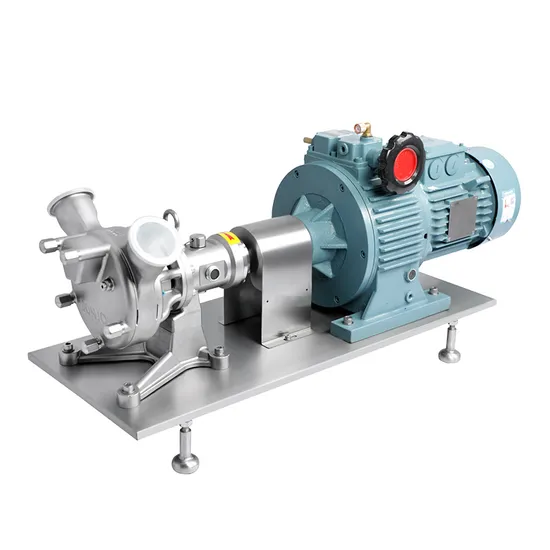

Sine Pump with Mechanical Stepless Speed Variator

Product Description

Sine Pump with Mechanical stepless speed variator DONJOY Sine Pump- Liquid Handling Equipment with bidirectional reversible operation, food-grade stainless steel design, gentle pumping for transferring high and low-viscosity media, no damage and no pulse during transfer, clean, efficient, durable, safe, and low-cost solutions.
Sine pump design A sinusoidal pump is a type of pump featuring a sine wave-shaped rotor that creates four moving chambers, which gently convey the duty fluid from the inlet port to the higher pressure discharge port. A sine pump is a new type of positive displacement pump, which has the characteristics of a more compact structure, higher conveying efficiency, and wider viscosity range of applicable conveying medium. Can be widely used in food, beverage, dairy, chemical, pharmaceutical and other industries.
DONJOY PZX Sine Pump Configuration
DONJOY provide the below various configurations.
Sine Pump Beverage industry pump with Reducer Gearbox & Motor
1) Variable-frequency motor, speed could be adjusted by frequency converter(VFD), the adjustable range is big 10-90hz. Must need an additional frequency converter, otherwise, the speed couldn't be adjusted.
2) Fixed speed reducer and motor, it also can be adjusted by frequency converter(VFD), the default output speed is around 300rpm, but the adjustable range is small, 30-60hz.
3.) Mechanical stepless speed variator, it no need additional VFD to control speed.
4). Sine pump direct with motor
5). Sine pump direct with mobile cart
6). Sanitary sine pump with control box and mobile cart
Product Description

Sine Pump - Liquid Handling Equipment
Beverage industry pump

Inlet & Outlet Sizes	1″-5″ (DN25-DN125)
End Connections	tri-clamp, thread, flange
Body Material	SS316L, AISI 316L (1.4404)
Body Types	90 degree
Mechanisal Seal	single seal (standard), double mechanical seal (option), SIC/SIC/FPM
Power Supply	1.1KW-30KW
Voltage	AC110V, 220-240V, 360-400V, 420-460V, 630-690V, 50/60Hz
Maximum Flow Rate	90 m³/h, 395 GPM
Maximum Pressure	15ba
Maximum temperature	150ºC/302°F
Maximum Revolution	900 RPM
Internal Finish	Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.
External Finish	Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.

PZX sine pump curve
Certificate
