| Model | WE67K 125T2500 6+1Axis |
| Pressure | 125ton |
| Max bending length | 2500mm |
| Column distance | 4300mm |
| Slide stroke | 320mm |
| Max opening height | 380mm |
| Throat depth | 400mm |
| Main motor power | 7.5kw |
| Machine size | 3000X1800X2500mm(LxWxH) |
| Weight | 6200kg |
| Axes | Y1 ,Y2, X, R, Z1, Z2 |

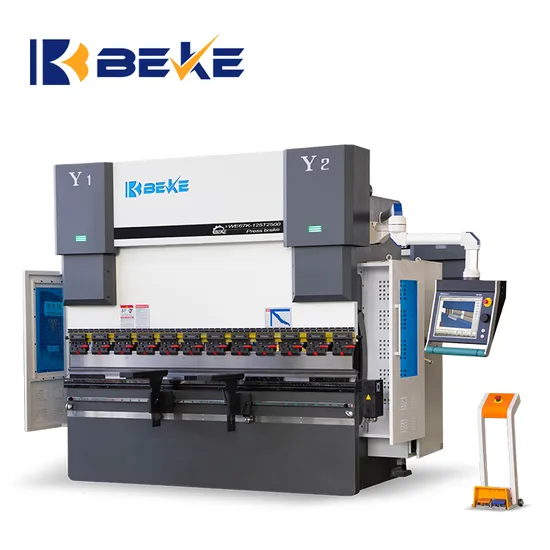

| WE67K CNC sheet metal press brake with streamlined design ,high speed ,high precision ,high rigidity. Electro hydraulic servo system,full loop controlling the synchronization of the upper slider. Mechanical compensation on crowning of worktable and deformation compensation on throat, ensuring good bending strength and precision. Backgauge is driven by digital AC servo motor,moved with ball screw,guided by linear guide. Now the press brake can provide variety of choicesand features for the products and function, to realizethe optimal bending process and solutions. | |
| DA66T Main Function: 3D visualisation in simulation and production 17″ high resolution colour TFT Full Windows application suite Delem Modusys compatibility (module scalability and adaptivity) USB, peripheral interfacing User specific application support within the controllers multitasking environment Sensor bending & correction interface | |
