Paper Faced Automatic Gypsum Board Plant Machine

Product Description

Paper faced Automatic gypsum board plant machine
Gypsum board introduction Gypsum board is a kind of building material with light weight, high strength, thin thickness, convenient processing, sound insulation, heat insulation and fire prevention, and it is one of the new light-weight plates that are focused on development.

Use of gypsum board
According to the analysis of gypsum board industry, gypsum board has been widely used in the internal partition wall, wall covering board (instead of wall plastering layer), ceiling, sound absorbing board, ground base board and various decorative boards of various buildings such as residential buildings, office buildings, shops, hotels and industrial plants.
International market situation
Gypsum board is a new building material highly praised by governments all over the world, and has a good development prospect and the international increment space is large.
Gypsum board Specification
length of plasterboard: 2000~3000mm width:1200-1220mm thickness:7mm-15mm
Type of plasterboard
a)Common paper surface gypsum board (code name P)
b) Fireproof paper surface gypsum board (code name H)
c) Waterproof paper surface gypsum board (code name S)
d) Waterproof & Fireproof paper surface gypsum board (code name SH)
The production line is able to produce water-resistance and fire-resistance plasterboard by modifying recipe
Plasterboard Standard
The quality of plasterboard is in accordance with Chinese National Standard GB/T9775-2008.

Gypsum board making machine
Annual production(m2)	Plant area(m2)	Drying method	Productin linespeed (m/min)	Requird workers	Electrical configuration
2million	70m×26m	Thermal oil	4.2	10	Siemens
3million	84m×30m	Thermal oil	6.25	11	Siemens
4million	110m×30m	Thermaloil/Hot stove	8	11	Siemens
5million	112m×30m	Thermaloil/Hot stove	10.5	11	Siemens
6million	122m×30m	Thermaloil/Hot stove	12.5	11	Siemens
8million	136m×30m	Thermaloil/Hot stove	16.5	11	Siemens
10million	150m×30m	Thermaloil/Hot stove	20	12	Siemens
12million	172m×30m	Thermaloil/Hot stove	24	13	Siemens
15million	204m×36m	Thermaloil/Hot stove	31	15	Siemens
20million	240m×40m	Thermaloil/Hot stove	40	15	Siemens
Product specifications: length 2400-3000mm width 1200-1220mm thickness 8-15mm

Process introduction
1.The paper feeding system supplied continuous face and back paper for paper faced gypsum board.
2. Raw materials were stirred and mixed evenly during the conveying process through batching systems.

3.After being measured by precise metering device, then they entered into mixer at the ratio.

4.The gypsum slurry was shaken out from the outlet of mixer to the back paper.

5.The face and back paper wrapped and pressed the slurry through forming machine.
6.The wet gypsum board completed the solidification process on setting belt conveyor.

7.The cutting machine cut the wet board into single board with pre-fixed length.

8.The gypsum board entered into 1#transverse board entry roller through acceleration roller.

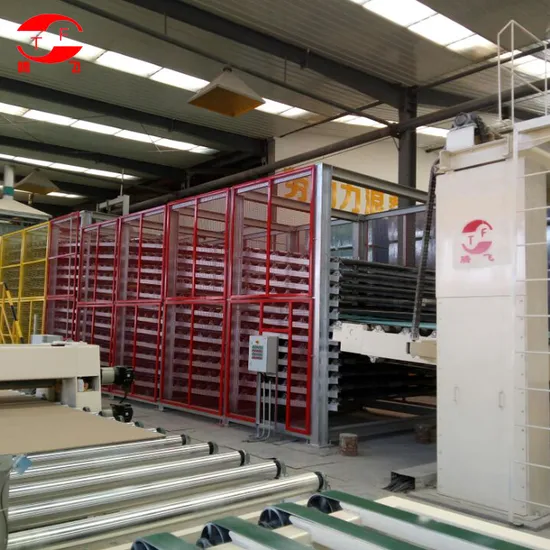

9.Then changed direction,through regrouping roller, the gypsum board entered into dryer in sequence by distributor.

10.The dryer evaporated the free water in the gypsum board and dried the board.

11.The dried board entered into 2# transverse conveying belt, accomplished direction changing and board pairing up together.

12.Through edge cutting saw, the board has been changed into finished product
Our factory
Shandong Tengfei Mechanical and Electrical Technology Co., Ltd located at the foot of the famous Mountain Tai, our company near the Beijing to Shanghai high-speed, Beijing to Fuzhou High-speed, 104 State Road. We are a integrated science and technology joint-stock enterprises, and we can design,manufacture,install,commission gypsum board and gypsum powder and gypsum block machine ourselves. At present, our company have the ability to design and manufacture gypsum board production line with annual capacity from 2 Million M2 to 50 Million M2, gypsum block production line with annual capacity from 100,000 M2 to 1.5 Million M2, gypsum powder production line and phosphogypsum powder production line and FGD gypsum powder production line and fluorine gypsum powder production line with annual capacity from 30,000 tons to 500,000 tons, and we also can produce PVC laminated gypsum board equipment and gypsum board light frame equipment.
Gypsum board production line adopts the German company, Lafarge, the United States companies and domestic well-known enterprises Kitashinchi Group, Taihe Group advanced technology. We adopts the horizontal flow, vertical airflow heat exchanger heating system, the raw material feeding system and edge cutting and edge sealing and edge grinding and recycling system and stacking system are all controlled by computer. All the whole line is full automation.
Our customer
Goods shipping
FAQ

Q1: Are you a manufacturing factory?
A1:Yes, we are a manufacturing factory with 30 years of experience.

Q2:What is the price of the equipment?
A2:The price of different production capacity is very different, please confirm the annual production capacity, Then contact the sales for quotation.
Q3:How long is the warranty period?
A3:We provide 1 year warranty and lifetime maintenance.
Q4:Do you provide installation and commissioning services?
A4:We provide one-stop service, from design and manufacturing to installation and commissioning until the production of high-quality gypsum board.
Q5:How about after-sales service?
A5:what services will be provided after signing the contract, what services will be provided after the factory is put into production, detailed consultation sales, she will answer you.
Q6:What should I do if I don't know how to build a gypsum board factory?
A6:As long as you have money and ideas, we have specialized in turnkey projects for 30 years to deliver a profitable factory for you.
Q7:What are the successful cases you have done?
A7:We have built gypsum board factories for customers in many countries .Please consult sales for detail cases.
We are a powerful manufacturing factory in China that can provide you with lifelong service.

---
