Handheld Thermal Imaging Camera, Thermal Imager Ht-18+

US$230.00
1-9 Pieces
US$220.00
10-99 Pieces
US$195.00
100+ Pieces

Basic Info.

Model NO.
HT-18+
Standard
Celsius/Fahrenheit
Accuracy
≥2°C
Usage
Industrial, Household
Display
Digital
Measuring Range
-20ºC ~ +550ºC
High Definition Display Screen
3.2 Inch Display Screen
Wide Angle Auto Focus
56° Viewing Angle
New Ultra-Sensitive Detector
Adopts 12μm Ultra Sensitive Detector
Infrared Resolution
256X192
Measurement Accuracy
-15°c~550°c, ±2°c
Measurement Accuracy 2
-20°c~15°c±4°c
Transport Package
Carrying Case
Trademark
HTI
Origin
China
HS Code
9027509090

Product Description

Product Description Infrared thermal imaging cameras are widely used in many fields such as medical, public security, fire protection, archaeology, transportation, agriculture and geology. It is an ideal choice for electricians and maintenance technicians to quickly locate problem areas.
Product Feature 1. New Ultra-Sensitive Detector: ADOPTS 12μm ULTRA SENSITIVE DETECTOR 2. High Definition Display Screen :3.2 Inch Display Screen 3. Wide Angle Auto focus: 56° VIEWING ANGLE 4. Automatic Tracking: Three-point simultaneous measurement 5. High-Definition Sensor: Measurable far and near 0.5-40m imaging distance, With visible light of 300000 pixels 6. Measuring Range: -20ºC ~ +550ºC Wider temperature measurement range, more application scenarios, good equipment, one is enough. 7. Dual Light Imaging Technology: The fusion of infrared and visible light, combines the advantages of both infrared and visible light, discovering the integration of recognition and improving efficiency. 8. Five Color Schemes: Multiple pseudo colors can be adjusted, and the image mode can be selected independently. 9. Powerful Offline Analysis Capabilities: Support PC side offline software for professional temperature analysis and quickly generate analysis reports. 10. Battery Endurance: FULL BATTERY LIFE 2-3 HOURS, Design of a dedicated detachable rechargeable lithium battery Using 2200mAh lithium battery Through Type-C USB interface Convenient charging and worry-free battery life. Product Parameters

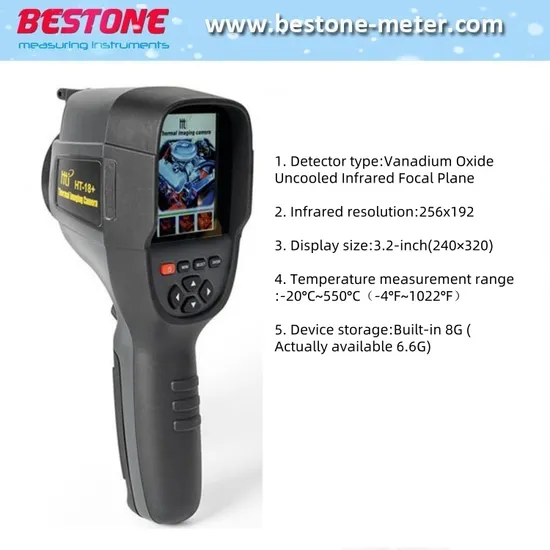

Model HT-18+
Detector type Vanadium Oxide Uncooled Infrared Focal Plane
Infrared resolution 256x192
Pixel Size 12μm
Focal length 4.0mm
Field angle 56°(H)x 42°(V)
IFOV 3.75mrad
Working band 8~14um
NETD ≤50mk@25°C, @F/1.0
Image frame rate ≤25Hz
Focusing mode Fixed
Emissivity setting Adjustable from 0.01 ~ 1.00
Temperature measurement mode Center point/hot and cold spot tracking
Color palette Rainbow, iron, cold color, white hot, black hot
Temperature measurement range -20°C~550°C(-4°F~1022°F)
Measurement accuracy -15°C~550°C±2°C or ±2%; -20°C~15°C±4°C
Other
Display size 3.2-inch(240×320)
Device storage Built-in 8G (Actually available 6.6G)
Picture /Video format JPG/MP4
Image analysis function Support offline analysis on PC
Language Chinese, English, Russian
Battery Type Dedicated removable rechargeable lithium battery
Battery capacity 2000mAh
Working time 2~3hours
Power interface Type-C
Power configuration 5 minutes / 20 minutes / no automatic shutdown
Work temperature -10°C~+50°C(14°F~122°F)
Storage temperature -20°C~+60°C(-4°F~140°F)
Relative humidity 10%~85%RH(non-condensing)
Product size 90x105x223mm
Product weight 389g
