Multifunctional Grain Combine Harvester Wheat Corn Soybean Rice Sesame Sunflower Harvester

Product Description

Product Parameters

Model		4LZ-13
Horsepower		Yuchai 260HP
Drive type		4WD
Dimension(L*W*H)(mm)		9450*5800*3850
Weight(kg)		12500
Cutting width (mm)		5400-6100
Production efficiency	Productivity(hm²/h)	1-2.7
	Fuel consumption(L/hm²)	≤41
	Fuel tank capacity(L)	370
	Working speed (km/h)	1.5-6
	Mini clearance(mm)	430
	Feeding speed(kg/s)	13
Thresher	Grain tank(m³)	10
	Max unload height(mm)	4750
	Threshing pattern	Vertical axial flow rod tooth type
	Grain unloading drum height	4400
	Sorting method	Reciprocating vibrating screen+Centrifugal fan
Chassis	Wheel base(mm)	3305
	F/R wheel space(mm)	F:2600/R:2638
	Tyre model(F/R)	F:28L-26/R:19.5L-24

Detailed Photos

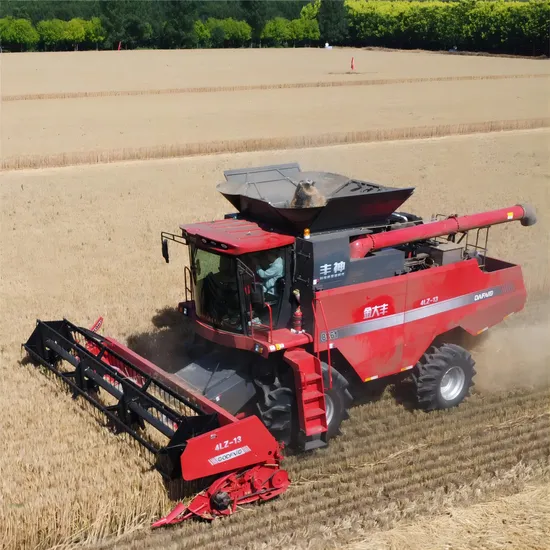

4LZ-13 type self-propelled wheat harvester uses longitudinal axis flow roller separation technology, mainly harvesting wheat, rice. By replacing parts, it can also harvest soybeans, miscellaneous grains, and corn kernels ( 6 rows corn header working width 4030 or 3780mm ).
As the top grain combine harvester in China, 4LZ-13 grain combine harvester can harvest crops such as soybeans, corn kernels, sesame, sunflowers, barley, sorghum, and rice by replacing the header and adjusting the speed. Such strong applicability and practicality make it very popular in the international agricultural market.
The customized version of 4LZ-13 has entered the international market and is well received by customers.
We provide you with a wealth of customized services to make your own grain combine harvester


Product Description
More detailed technical information about 4LZ-13
A working width of 5.4-6.1 meters and a feeding rate of 13 kg/s. Taking a standard block of 200 meters in length as an example, 2.7 hectare of wheat can be harvested in one hour; A Yuchai 260 horsepower engine with four operating gears adjustable from 260, 240, 220, and 160 horsepower. The driver can choose different power outputs according to the different crops to be harvested, saving energy and fuel; The 28L-26 type front wheel and the 19.5L-24 type rear wheel, all of which use enlarged and wide high-pattern tires. They have strong adaptability to sandy, muddy, and slippery land; A sturdy four-wheel drive structure. The front drive uses a static hydraulic drive for comfortable and convenient operation. The 1000 series front axle + heavy-duty four-wheel drive rear axle has strong load-bearing capacity and good roadability; An elongated fish scale screen increases the cleaning area. convenient and quick-change concave screen panels can be used to quickly change the cutting header and threshing components to complete the harvest of wheat, corn, soybeans, sorghum, and other crops, achieving multiple uses with one machine; A heavy-duty high-low gearbox roller transmission housing, combined with a continuously variable speed disk, allows the roller speed to adaptively adjust from 300 to 1100. All the spherical bearings of the entire vehicle use American Peer bearings, which have strong load-bearing capacity and long service life. The transmission belt uses a black one-tooth belt, which has strong tension and good heat dissipation, meeting the needs of long-time and large area operations; The high-end large-longitudinal axis flow harvester's cutting header bridge has a reverse function, making it easier to clean the bridge and cutting table blockage The grain tank is raised and lowered automatically with a hydraulic one-button operation. The driver can open and close the grain bin cover through the electric control button.
Company Profile
Shandong King Machinery Co., Ltd. is a national high-tech enterprise focusing on the research and development, manufacturing and export of agricultural machinery. Its main products include corn harvesters, grain combine harvesters, soybean harvesters, peanut harvesters, rice harvesters and other harvesting machinery as well as tractors, agricultural auxiliary tools, etc.

The company covers an area of 300,000 square meters, has nearly 1,000 employees, has 30 years of experience in agricultural machinery production, provides customers with quality services, and its products are exported to more than 30 countries and regions including Russia, South America, Central Asia, Southeast Asia, Africa, etc. The company has more than 70 scientific and technological invention patents. With good management and R&D capabilities, it continuously innovates and designs according to customer needs, produces different models, and has won unanimous praise from domestic and foreign customers with excellent product quality, independent R&D capabilities, and perfect after-sales service. "Serve customers and make progress together!" In the future, we will continue to work hard in the field of agricultural machinery and equipment, continue to provide good products and services to the world, continue to provide farmers with the best planting support, strive to be a pioneer and leader in the research and development and manufacturing of various agricultural machinery, and be the KING of agricultural machinery.
The most advanced technology ensures the excellence of the product
The most diverse choices to meet the different needs of customers
The most sophisticated technical team provides the most timely and professional technical services

Our Advantages
What conquers the market is never price,
but quality.
What moves people is never language,
but integrity.
What keeps customers is never discount,
but word of mouth.
Certifications
PERFECT TECHNOLOGY GIVES YOU FULL SATISTACTION
We are confident enough because we have advanced technology

---
