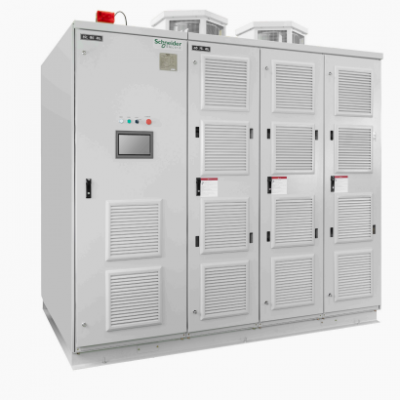

HARSVERT-VA10/650 HARSVERT-VS10/650 Medium Voltage Variable frequency drive 10kV VFD
Introduction
HARSVERT Medium-voltage VFD is highly reliable, easy to operate and exceptionally efficient.
HARSVERT is applicable to 3-phase mMedium-voltage asynchronous motor and synchronous motor (vector control with/without speed sensor, and V/f control mode). It is equipped with the state-of-the-art IGBT, thus capable of providing sophisticated services.
General Technical Data
Order List
| Model No. | Output Current | Typical Motor | Capacity |
| Voltage Level:10 kV | [A] | Power [kW] | [kVA] |
| HARSVERT-VA10/018 | 18 | 220 | 500 |
| HARSVERT-VS10/018 |
| HARSVERT-VA10/020 | 20 | 250 | 500 |
| HARSVERT-VS10/020 |
| HARSVERT-VA10/023 | 23 | 280 | 500 |
| HARSVERT-VS10/023 |
| HARSVERT-VA10/025 | 25 | 315 | 500 |
| HARSVERT-VS10/025 |
| HARSVERT-VA10/028 | 28 | 355 | 500 |
| HARSVERT-VS10/028 |
| HARSVERT-VA10/030 | 30 | 400 | 500 |
| HARSVERT-VS10/030 |
| HARSVERT-VA10/035 | 35 | 450 | 565 |
| HARSVERT-VS10/035 |
| HARSVERT-VA10/040 | 40 | 500 | 625 |
| HARSVERT-VS10/040 |
| HARSVERT-VA10/043 | 43 | 560 | 700 |
| HARSVERT-VS10/043 |
| HARSVERT-VA10/048 | 48 | 630 | 790 |
| HARSVERT-VS10/048 |
| HARSVERT-VA10/055 | 55 | 710 | 890 |
| HARSVERT-VS10/055 |
| HARSVERT-VA10/060 | 60 | 800 | 1000 |
| HARSVERT-VS10/060 |
| HARSVERT-VA10/065 | 65 | 900 | 1125 |
| HARSVERT-VS10/065 |
| HARSVERT-VA10/070 | 70 | 1000 | 1250 |
| HARSVERT-VS10/070 |
| HARSVERT-VA10/080 | 80 | 1120 | 1400 |
| HARSVERT-VS10/080 |
| HARSVERT-VA10/085 | 85 | 1120 | 1400 |
| HARSVERT-VS10/085 |
| HARSVERT-VA10/090 | 90 | 1250 | 1565 |
| HARSVERT-VS10/090 |
| HARSVERT-VA10/095 | 95 | 1250 | 1565 |
| HARSVERT-VS10/095 |
| HARSVERT-VA10/100 | 100 | 1400 | 1750 |
| HARSVERT-VS10/100 |
| HARSVERT-VA10/120 | 120 | 1600 | 2000 |
| HARSVERT-VS10/120 |
| HARSVERT-VA10/125 | 125 | 1800 | 2250 |
| HARSVERT-VS10/125 |
| HARSVERT-VA10/135 | 135 | 1800 | 2250 |
| HARSVERT-VS10/135 |
| HARSVERT-VA10/140 | 140 | 2000 | 2500 |
| HARSVERT-VS10/140 |
| HARSVERT-VA10/160 | 160 | 2240 | 2800 |
| HARSVERT-VS10/160 |
| HARSVERT-VA10/180 | 180 | 2500 | 3125 |
| HARSVERT-VS10/180 |
| HARSVERT-VA10/200 | 200 | 2800 | 3500 |
| HARSVERT-VS10/200 |
| HARSVERT-VA10/220 | 220 | 3150 | 3940 |
| HARSVERT-VS10/220 |
| HARSVERT-VA10/240 | 240 | 3350 | 4190 |
| HARSVERT-VS10/240 |
| HARSVERT-VA10/260 | 260 | 3550 | 4440 |
| HARSVERT-VS10/260 |
| HARSVERT-VA10/275 | 275 | 3800 | 4750 |
| HARSVERT-VS10/275 |
| HARSVERT-VA10/280 | 280 | 4000 | 5000 |
| HARSVERT-VS10/280 |
| HARSVERT-VA10/330 | 330 | 4500 | 5625 |
| HARSVERT-VS10/330 |
| HARSVERT-VA10/360 | 360 | 5000 | 6250 |
| HARSVERT-VS10/360 |
| HARSVERT-VA10/385 | 385 | 5600 | 7000 |
| HARSVERT-VS10/385 |
| HARSVERT-VA10/435 | 435 | 6300 | 7875 |
| HARSVERT-VS10/435 |
| HARSVERT-VA10/465 | 465 | 6800 | 8500 |
| HARSVERT-VS10/465 |
| HARSVERT-VA10/490 | 490 | 7100 | 8875 |
| HARSVERT-VS10/490 |
| HARSVERT-VA10/510 | 510 | 7500 | 9375 |
| HARSVERT-VS10/510 |
| HARSVERT-VA10/550 | 550 | 8000 | 10000 |
| HARSVERT-VS10/550 |
| HARSVERT-VA10/580 | 580 | 8500 | 10625 |
| HARSVERT-VS10/580 |
| HARSVERT-VA10/605 | 605 | 9000 | 11250 |
| HARSVERT-VS10/605 |
| HARSVERT-VA10/650 | 650 | 9500 | 11875 |
| HARSVERT-VS10/650 |
| HARSVERT-VA10/680 | 680 | 10000 | 12500 |
| HARSVERT-VS10/680 |
| HARSVERT-VA10/745 | 745 | 11200 | 14000 |
| HARSVERT-VS10/745 |
| HARSVERT-VA10/830 | 830 | 12500 | 15625 |
| HARSVERT-VS10/830 |
| HARSVERT-VA10/850 | 850 | 13000 | 16250 |
| HARSVERT-VS10/850 |
Dimensions
