Fast Speed Post Tension Galvanized Steel Corrugated Flat Duct Machine

Product Description

Post Tension Corrugated Steel Duct Making Machine for Post-Tension Concrete Project
Features of Galvanized Spiral Corrugated Post-Tension Tube Forming Machine 1. It is a new generation corrugated pipes making machine in China.
2. 5 Rollers, the before old machine is only 4 rollers.
3. Forming duct mould head is made of high glass steel, not easy happen damages though you use it many years.
4. We add the fans onside of machine for further cooling after long time working.
5. With intelligent Gear Box to control rolling duct speed, speed can be adjustable.
6. Good quality with best price.
7. Exported Countries: Thailand, India, Pakistan, Bolivia,Mongolia, Cambodia, Netherlands, etc.
8. Warranty Time for Machine: 15 Mouths, you can use it for many years without happen any serious problems.
Round Metal Duct Made by Our Duct Making Machine

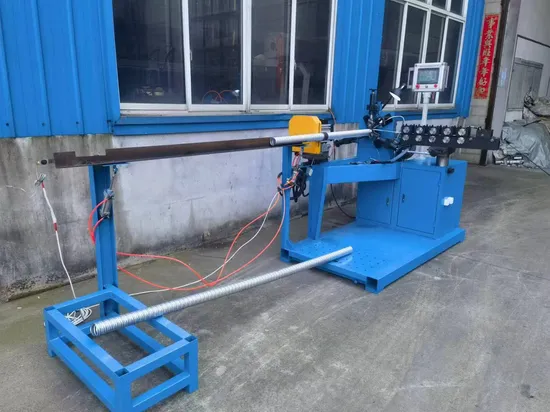

Post Tension Spiral Duct Forming Machine for Post-Tensioning System
Technical Data for High Quality CNM-YJG150 Corrugated Duct Making Machine

Model	CNM-YJG150(High Quality)
Thickness of steel strip	0.25-0.5mm
Thickness of steel strip	36mm
Producing metal ducts diameter	40mm to 150mm
With Rolling Mould Head:	40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm,95mm, 100mm,105mm, 110mm,115mm, 120mm, 125mm, 130mm, 135mm,140mm, 150mm.
Duct Spiral Pitch	26mm(Saving Materials)
Duct Corrugation Type	Double Waves
Duct Corrugation Width	6mm
Duct Corrugation Height	3.5mm
Producing Duct Speed	13.5m/min, Adjustable
Voltage	Three Phase, 415V, 50HZ.
Power for cutting machine	1.5kw
Water pump motor	80w
Main power	7.5kw
Over dimension	1435x 1550 x 1410mm
Weight	850kg

CNM-ZGB Flat Sheathing Ducts Making Machine
Flat Metal Duct Made by Our Flat Duct Machine

ZGB flat metal ducts machine is a equipment to extrude round metal ducts make them become flat metal ducts.
Flat duct is used for post tension slab in buildings and brirdge construction, the common size is 50x20mm,60x20mm, 70x20mm, 80x20mm, 90x20mm, and we also supply flat duct making machine for making flat duct size: 40x80mm, 50x100mm.

CNM-ZGB Flat Sheathing Ducts Making Machine Technical Data:

Model	CNM-ZGB Flat Duct Making Machine
Speed	Speed can be adjustable
Making Flat Ducts Specification	Flat Duct Width (mm) (Can be Adjustable)	Flat Duct Height( mm) (Can be Adjustable)
	50	20
	60	20
	70	20
	80	20
	90	20
	80	40
	100	50

OUR ADVANTAGES
Henan Prestressing Equipment Co.,Limited manufacture full complete post tension components, materials and post tension equipment for buildings and bridge construction.
Our Product Ranges:
1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system, arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges, anchor bearing plate, spiral reinforcing rings.
2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.
3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe.
4. Heavy equipment: bridge girder launching machine, drilling rig, bridge girder transporter
New Generation Post Tension Spiral Metal Duct Making Machine
FAQ:
1). Q: What information should provide before placing order?
We are appreciated you provide us detail information about your requirement:
1. Inner Diameter Duct you need.
2. Voltage for machine.
3. What is your required Destination Port.
4. Order Quantity.

2) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).

3) What is your Minimum Order?
A: MOQ: 1 Set.

4) Q: Payment Terms?
A TT, LC, Western Union, Paypal, etc.

5) Q: How to transport the goods:
A: by shipping, airflight, express.

---
