Small Stone 2PG750*500 Double Roller Crusher for Gold Ore

Product Details

Product Description

Product Description

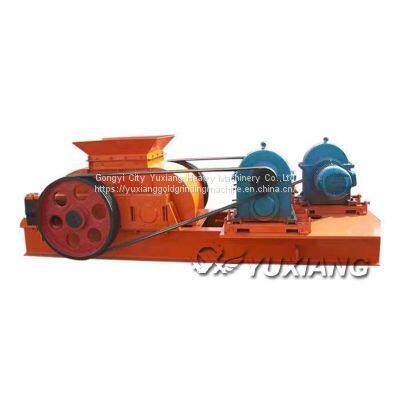

Small Stone 2PG750*500 Double Roller Crusher for Gold Ore
Product Description
Roller crusher is also called double roll crusher, double teeth roll crusher etc. The surface of roller crusher are made of high manganese steel, which can stand up to heat treatment. It is widely used for crushing high hard and medium hard materials in such industrial departments such as metallurgy, building material and refractory. It has the features of low noise, little powder dust, reliable performance and convenient maintenance. The grain size of the input material is large, the particle size of the output product can be controlled, and it is possible to effectively destroy the material whose compressive strength is less than 160 MPa.
Working Principle:
The roller crusher will crush the crushed material through the feeding mouth into the two rollers, After being squeezed and crushed, the finished material falls naturally. When there are too hard or can not be broken, the roller in hydraulic cylinder or spring under the role of automatic retreat, so that the gap between the roller increased, too hard or not broken objects fall, thus protecting the machine from damage. The two rollers rotating in the opposite direction have clearance, change the clearance, control the product big discharge granularity. Double roller crusher's the materials by relying on the two round rollers rotating at the opposite direction, and four-roll crusher crushes the materials by relying on the two pairs of round rollers rotating at the opposite direction.
Product Parameter:

Model	Roller Diameter (mm)	Roller Length(mm)	Feeding Size(mm)	Output Size(mm)	Capacity (t/h)	Power (kw)
2GP-400X250	400	250	≤25	1-8	5-10	5.5*2
2GP-500X450	500	450	≤30	1-15	10-20	11*2
2GP-610X400	610	400	≤40	1-20	13-35	15*2
2GP-750X500	750	500	≤40	2-20	15-40	18.5*2
2GP-800X600	800	600	≤40	3-20	20-50	22*2
2GP-1000X500	1000	500	≤120	3-20	30-60	37*2
2GP-1100X600	1100	600	≤150	3-20	50-80	37*2
2GP1000X1000	1000	1000	≤120	3-20	60-80	45*2

Application materials: limestone, pebble, coal, dolomite, granite, basalt, iron ore, silica sand etc.
Company Information
Gongyi Yuxiang Heavy Machinery Factory has been established for more than 20 years. It is a large and medium-sized heavy machinery manufacturing co., LTD., which integrates r&d, manufacturing and sales. Since its establishment, the use of scientific modern enterprise management methods, excellent product quality and perfect after-sales service, set up a good image at home and abroad.
Our products include crusher series, grinding machine series, drying machine series, charcoal machine series, carbonization furnace series, granulator series. It is widely used in mining, building materials, metallurgy, chemical industry, communications, water conservancy and other industries. Our products are not only sold to more than 20 provinces, cities and autonomous regions, but also exported to more than 10 countries and regions such as Eastern Europe, Middle East, Asia, Africa, North America, South America and Oceania.
If you are interested in Yuxiang Machinery Double Roller Crusher, please contact us:
Whatsapp:+8618738127720
Email:gcy@goldgrindingmachine.com

---
