Njp-400 Powder and Pellet Filler for Hard Gelatin Capsules

Product Description

Product Description NJP-400 automatic capsule filling machine adopts intermittent rotary operation, orifice plate type dosing filling, precise and
compact design, stable and reliable running.It can automatically complete sowing, separating, filling, rejecting, lock capsule and
finished product exported and a variety of processes. Fully enclosed ten-station turntable, the module is designed in a single
row of 3 holes, becoming the first choice for hard capsule filling equipment in either hospitals or medium and small-sized
pharmaceutical companies.
Features:
Performance characteristics:
√Fully enclosed ten-station turntable, easy to clean, no pollution, stable running and high precision.
√The dosing plate adopts a three-dimensional adjusting mechanism to evenly measure the gap between the plate and the copper ring to reduce the phenomenon of powder leakage and ensure the difference in the loading.
√Modular powder filling mechanism, easy to disassemble and easy to clean.
√ With high-precision, high-configuration transmission mechanism, significantly reduce the vibration of the equipment during
operation, greatly improving the stability and service life of the machine.
√The main electronic control components adopt imported brands, and the advanced control principle ensures the accurate realization of various program control and safety protection functions.
√The man-machine interface is beautiful and dustproof, easy to operate and fully functional.

Technical parameters:

Model	NJP-400
Output	400capsules/min
Machine weight	900Kg
Machine Dimensions	765(+210)x785x1900mm
Power Supply	380/220V 50Hz
Motor power	4KW(standard)
No.of segment bores	3
Vacuum	30m/h -0.03--0.05Mpa
Dust	16Kpa 180m/h
Noise	<75DB(A)
Making rate	Empty capsule 99% full capsule 98% or more
Suitable for Capsule	00#-5#
Filling error	±2.5%-±3.5%

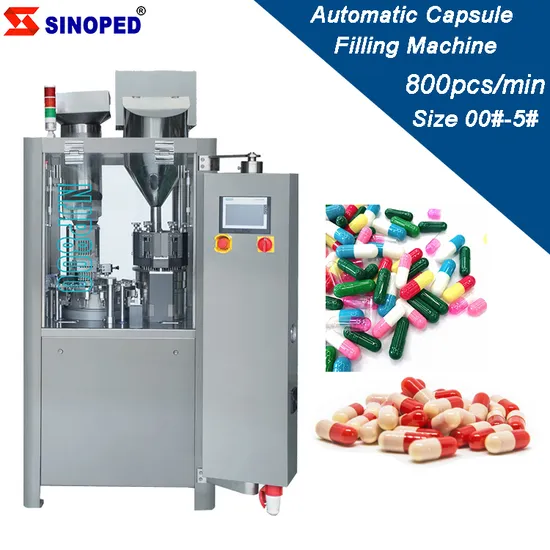

NJP-800 automatic capsule filling machine adopts intermittent rotary operation, orifice plate type dosing filling, precise and compact design, stable and reliable running.It can automatically complete sowing, separating, filling, rejecting, lock capsule and finished product exported and a variety of processes. Fully enclosed ten-station turntable, the module is designed in a single row of 6 holes, becoming the first choice for hard capsule filling equipment for pharmaceuticals, health care products and other manufacturing companies.
Performance characteristics:
1.Fully enclosed ten-station turntable, easy to clean, no pollution, stable running and high precision.
2.The dosing plate adopts a three-dimensional adjusting mechanism to evenly measure the gap between the plate and the copper ring to reduce the phenomenon of powder leakage and ensure the difference in the loading.
3.Modular powder filling mechanism, easy to disassemble and easy to clean.
4. With high-precision,high-configuration transmission mechanism, significantly reduce the vibration of the equipment during operation, greatly improving the stability and service life of the machine.
5.The main electronic control components adopt imported brands, and the advanced control principle ensures the accurate realization of various program control and safety protection functions.
6.The man-machine interface is beautiful and dustproof, easy to operate and fully functional.

Model	NJP-800
Output	800capsules/min
Machine weight	1000Kg
Machine Dimensions	840(+339)x820(+339)x2000mm
Power Supply	380/220V 50Hz
Motor power	4.5KW(standard)
No.of segment bores	6
Vacuum	48m/h -0.03--0.05Mpa
Dust	16Kpa 135m/h
Noise	<75DB(A)
Making rate	Empty capsule 99% full capsule 98% or more
Suitable for Capsule	00#-5#
Filling error	±2.5%-±3.5%

---
