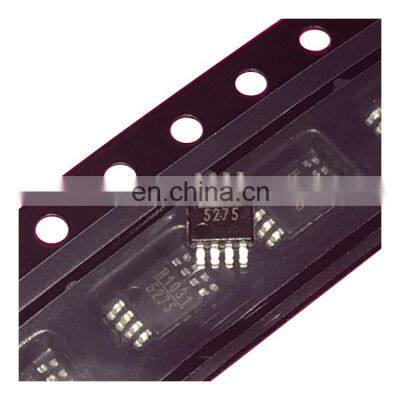

HMC1031MS8E 0.1 MHz to 500 MHz Clock Generator with Integer N PLL HMC1031 h1031 5275
Product Description
Product Description Description FEATURESLow current consumption: 1.95 mA typicalHigh phase frequency detector rate: 140 MHzHardware pin-programmable clock multiplication ratios:1×/5×/10×Lock detect indicatorPower-down mode (0.8 μA typical)8-lead MSOP package: 4.9 mm × 3.0 mmAPPLICATIONSLow jitter clock generationLow bandwidth (BW) jitter attenuationLow frequency phase-locked loops (PLLs)Frequency translationOven controlled crystal oscillator (OCXO) frequencymultipliersPhase lock clean high frequency references to 10 MHzequipmentGENERAL DESCRIPTIONTogether with an external loop filter and a voltage controlled crystal oscillator (VCXO), the HMC1031 forms a complete clock generator solution targeted at low frequency jitter attenuation and reference clock generation applications.The HMC1031 features a low power integer N divider, supporting divide ratios of 1, 5, and 10, which is controlled via external hardware pins and requires no serial port. The integrated phase detector and charge pump are capable of operating at up to 140 MHz, and a maximum VCXO input of 500 MHz ensures frequency compliance with a wide variety of system clocks and VCXOs. Additional features include an integrated lock detect indicator available on a dedicated hardware pin, and a built in powerdown mode. The HMC1031 is housed in an 8-lead MSOP package. Why Choose Us FAQ Q1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you. All Categories
