Chinese Manufacturers Wholesale 6-14m Platform Electric Hydraulic Small Scissor Lifts for Sale

Product Description

Product Description
Hydraulic lifting platform is a fixed transportation equipment that lifts goods from one height to another. Because of its large weight, volume and safety, fixed hydraulic lift is a special form of high altitude lifting platform, which should be classified as lifting machinery. As a special hydraulic lifting platform product for transporting goods between the building floors, the main function is to carry various kinds of goods between working floors; at present, fixed hydraulic lifts are mostly used for the lifting of vehicles in the three-dimensional garage and the basement garage.
Hydraulic lifting platform is defined: four-wheel mobile lifting platform, two-wheel traction lifting platform, car modification lifting platform, hand-pushing lifting platform, hand-rocking lifting platform, AC and DC dual-purpose lifting platform, battery car load lifting platform, lifting height from 4m to 12m, they have the characteristics of operating smoothly and accurately, frequent start, large load, etc. which can solve all kinds of lifting difficulty effectively and make production easily.

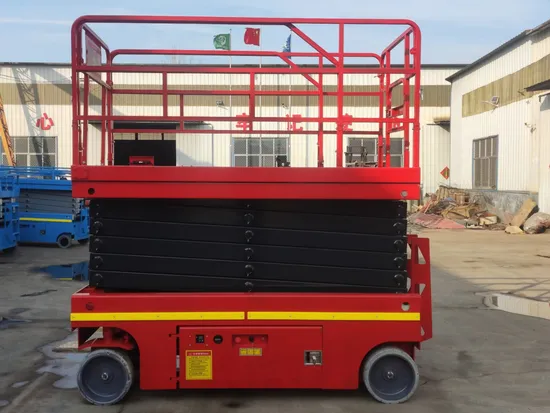

Detailed Photos

Product Parameters

Model	Hightop-LP06	Hightop-LP08	Hightop-LP10	Hightop-LP12
Safe working load	320kg	320kg	320kg	320kg
Safe working load of extension	113kg	113kg	113kg	113kg
Maximum number of workers	2	2	2	2
Maximum working height	8m	10m	12m	14m
Maximum platform height	6m	8m	10m	12m
Overall length	2600mm	2600mm	2600mm	2600mm
Overall width	1170mm	1170mm	1170mm	1170mm
Overall height (fence not folded)	2280mm	2400mm	2520mm	2640mm
Overall height (fence folding)	1580mm	1700mm	1820mm	1940mm
Working platform size (length x width)	2400mm*1170mm	2400mm*1170mm	2400mm*1170mm	2400mm*1170mm
Platform extension size	0.7m	0.7m	0.7m	0.7m
Minimum ground clearance (retracted)	0.1m	0.1m	0.1m	0.1m
Minimum ground clearance (lifting	0.019m	0.019m	0.019m	0.019m
Wheelbase	1.89m	1.89m	1.89m	1.89m
Minimum turning radius (inner wheel)	0	0	0	0
Minimum turning radius (outer wheel)	2.20m	2.20m	2.20m	2.20m
Lifting motor/drive motor	24v/4.0kw	24v/4.0kw	24v/4.0kw	24v/4.0kw
Machine ground speed (stowed)	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Machine travel speed (lifting state)	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Up / down speed	80/90 sec	80/90 sec	80/90 sec	80/90 sec
Battery	6V/230Ah	6V/230Ah	6V/230Ah	6V/230Ah
Charger	24v/25A	24v/25A	24v/25A	24v/25A
Max Climb Capability	25%	25%	25%	25%
Maximum allowable working angle (indoor / outdoor)	2°/3°	2°/3°	2°/3°	2°/3°
Tyre	Φ381*127	Φ381*127	Φ381*127	Φ381*127
Weight of whole machine	2200kg	2400kg	2600kg	2800kg

Our Advantages
Pre-sale Service
1.We have full stock, and can deliver within short time.Many styles for your choices.
2.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
3.All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After-sale Service
1.We are very glad that customer give us some suggestion for price and products.
2.If any question, please contact with us freely by E-mail or Telephone.
FAQ
1. How about your price?
Although our products are of excellent quality,but our prices are very favorable and competitive. Customer from all over the world to purchase our products, because our best price.
2. What's your payment?
Our Payment could be
(1) 100% T/T (2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
3. What is your payment method?
L/C, D/A, D/P, T/T, Western Union, MoneyGram
4. Could you special design and produce for you?
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
5. Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.

---
