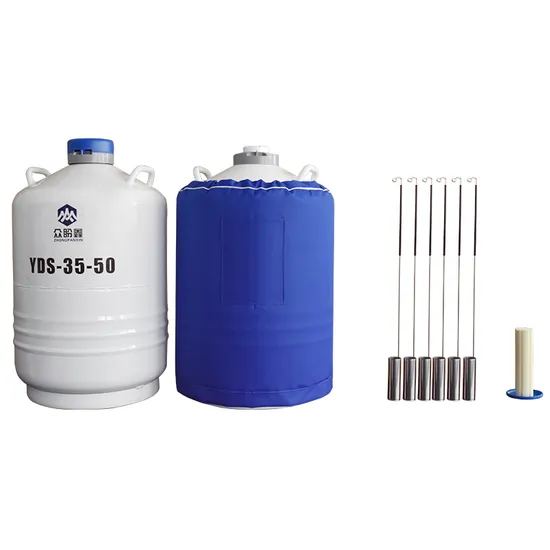

Yds 35 Liquid Nitrogen 35 Liters LNG Dewar Tank Container

Product Description

Product Description And Images
Liquid nitrogen tank is a kind of container used to store liquid nitrogen of low temperature. Liquid nitrogen tank have liquid nitrogen storage tank of storage type and liquid nitrogen transport tank for transport. Storage tank is mainly used for indoor liquid nitrogen storage, and it can't be move for a long distance in the working state. In order to meet the transport requirements, transport tank is made out with a special shock-proof design. So transport tank can be used as storage tank, but also as transport tank. However, the strong shake or conlision still should be avoided.
Related ProductsIn addition to producing liquid nitrogen tanks, zhongpanxin Industrial Co., Ltd. also develops and produces liquid nitrogen pumps, liquid nitrogen guns, liquid nitrogen pens, etc. Zhongpanxin liquid nitrogen tank and its accessories have favorable prices and reliable quality. The liquid nitrogen tank has been storing liquid nitrogen for a long time. Welcome to visit and guide zhongpanxin liquid nitrogen tank factory.
Production Process

YDS-series products are mainly made up of outer shell, inner vessel, neck tube, multi-layer isolating material and canisters.
1.The outer shell and inner vessel are made of the aluminum alloy plate featuring light weight, high cryogenic strength and corrosion resistance.
2.The neck tube is made of glass-fiber reinforced plastics featuring of high mechanical strength and low heat conductivity.
3.The multi-layer insulation is composed of the reflecting screen of aluminum foils with high reflectivity and insulation material with low heat conductivity and low gas-passing speed to reduce heat .
4.The jacket between the outer shell and inner vessel is of high vacuum to prevent thermal convection. Moreover, an adsorbent with a high adsorbing capacity at the cryogenic temperature is used to ensure the long-term stable and reliable performance of the dewar with more than five-year life service.
Specification of YDS Type Liquid Nitrogen Container:

Type	Volume(L)	Caliver(mm)	OD(mm)	Height(mm)	Empty weight(kg)	Qualified storage days	Excellet storage days
YDS-2	2.5	35	224	370	2.8	20	25
YDS-3	3.15	50	224	420	3.4	26	31
YDS-6	6	50	305	460	4.5	52	63
YDS-10	11.2	50	305	550	6.3	85	110
YDS-10-80	11.2	80	305	550	6.3	48	57
YDS-10-125	11.2	125	305	550	6.3	25	32
YDS-15-210	11.2	210	305	550	7	13	18

YDS-15	16	50	365	500	9	134	161
YDS-15-125	16	125	365	600	9	42	53
YDS-20	21	50	365	610	9.5	170	210
YDS-30	32	50	446	670	14.50	254	295
YDS-30-80	32	80	446	670	14.50	147	174-N
YDS-30-125	32	125	446	670	14.60	90	112
YDS-30-210	32	210	446	670	16	40	50
YDS-35	35.5	50	446	695	17	250	310

YDS-35-80	35.5	80	446	695	17	159	187
YDS-35-125	35.5	125	446	695	17	95	125
YDS-50-80	50	80	500	850	22	147	189
YGS-50B-125	50	125	500	850	22	110	134
YDS-50B-210	50	210	500	850	22	50	60

Company Information
Xinxiang Zhong pan Xin Industrial Co., Ltd., Xinxiang, China, specially produces cryogenic liquid nitrogen tank, liquid nitrogen biological vessel tank, liquid nitrogen gun (cryotherapy instrument), foot operated self boosting liquid nitrogen pump, liquid nitrogen pen, liquid nitrogen extraction bucket, liquid nitrogen basket and other related fittings. With the increased awareness of liquid nitrogen tank technology and industry, we are actively expanding international markets, and the products have been exported to more than 20 countries, including the United States, Germany, Japan, Turkey, India, Mexico, Vietnam.
