Metal Boring Machine Universal Milling Machine for High Rigidity Metal Component Fabrication

Product Description

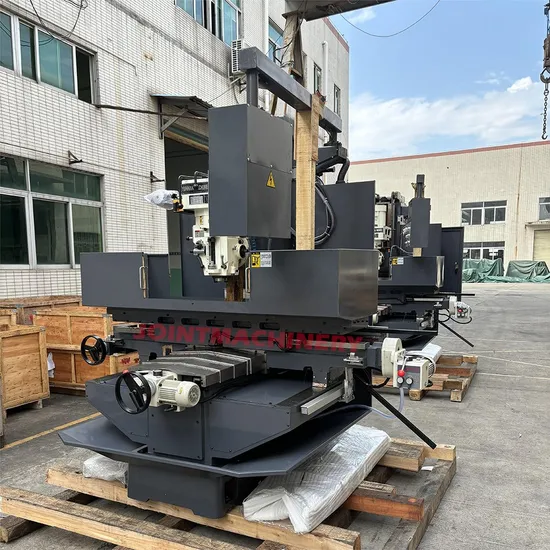

Recombination Precision Vertical Horizontal Milling Machine
√ Bed milling machine, engineered for high rigidity with an impressive capacity to bear large loads.
√ Featuring the original precision milling head from Taiwan, along with a ball screw and NSK P4 precision spindle bearing, ensuring a spindle tolerance of a mere 0.002mm for outstanding accuracy.
√ Utilizing precision ball screws across three axes, this machine offers rapid operation and exceptional precision in positioning.
√ Ideally suited for processing heavy and substantial workpieces, ranging from 800 to 1000KG.
√ Designed with a robust bed structure, crafted from Meehanite cast iron, embodying a high-rigidity architecture.
1. WORKTABLE
Our worktable stands as a paragon of masterful craftsmanship, boasting ultra-audio quenching, precision grinding, and delicately scraped guides to ensure sublime smoothness. Augment its versatility with an optional rotary table for expanded functionality.
2. TURRET MILLING HEAD
Engineered for adaptability, our cutting-edge turret milling head can swivel 45° forward-backward and rotate 90° left-right, simplifying the milling of complex angles with unparalleled ease.
3. SPINDLE
Outfitted with a high-precision R8/NT30/NT40 spindle, our machine achieves a remarkable spindle runout of merely 0.003mm, guaranteeing exceptional precision and steadfast reliability.
4. X/Y/Z AUTO FEED
Revolutionize your workflow with our automatic X/Y axis feed coupled with an electric Z-axis lift, substantially boosting efficiency and streamlining operational processes.
5. DRO
Attain unmatched precision through our customizable 2-axis or 3-axis DROs, meticulously crafted to meet your specific needs and elevate overall performance.
Metal Boring Machine Universal Milling Machine for High Rigidity Metal Component Fabrication

Model				B600SC
Table size			mm	1370*405
Travel		X axis	mm	1000
		Y axis	mm	350
		Z axis	mm	520
Travel of spindle quill			mm	140
Maximum distance from spindle nose to table			mm	760
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	58-3000
		60HZ	rpm	70-3600
	Rotation speed (Variable speed milling head)	50HZ	rpm	58-3250
		60HZ	rpm	70-3900
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			NT40
	Rated power		HP	7.5HP
Tilt angle		Forward and Backward	°	0°
		Left and Right	°	±90°
Dimension			mm	2000*2230*2150
Weight			kg	2900

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of global leadership in the industry, distinguished for its unparalleled expertise in crafting and exporting CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes. Our expansive selection of top-tier milling and grinding machines underscores our steadfast dedication to delivering machines of exceptional quality and services that surpass expectations on a global scale. By seamlessly integrating pioneering Taiwanese and German technologies, our production methodologies ensure superior quality and trustworthy reliability, conforming to the industry's most rigorous standards. Celebrated for their remarkable performance in precision, stability, and reliability, our machines excel in handling a wide spectrum of intricate machining tasks. Our prestigious products have garnered international recognition, making significant inroads into markets across Asia, Europe, South America, North America, and beyond. We remain steadfastly committed to fostering enduring partnerships with clients worldwide, consistently creating substantial business value in tandem.

---
