| Sheet grade PET washing system | |||||
| Type | PET500 | PET1000 | PET2000 | PET3000 | PET5000 |
| Capacity(kg/h) | 500 | 1000 | 2000 | 3000 | 5000 |
| Energy consumption(kWh) | 110 | 170 | 340 | 460 | 680 |
| Steam consumption(kg/h) | 500 | 600 | 1000 | 1200 | 1500 |
| Chemical consumption(kg/h) | 10 | 14 | 18 | 28 | 50 |
| Water consumption(ton/h) | 0.7 | 1.5 | 3 | 4.5 | 8 |
| Installation power(kWh) | 220 | 395 | 430 | 590 | 850 |
| Space(m²) | 700 | 800 | 1200 | 1500 | 2000 |
| Man power(persons/shift) | 6 | 8 | 10 | 12 | 12 |
| Fiber grade PET washing system | |||||
| Type | PET500 | PET1000 | PET2000 | PET3000 | PET5000 |
| Capacity(kg/h) | 500 | 1000 | 2000 | 3000 | 5000 |
| Energy consumption(kWh) | 70 | 140 | 280 | 350 | 590 |
| Steam consumption(kg/h) | 300 | 500 | 800 | 1000 | 1200 |
| Chemical consumption(kg/h) | 10 | 12 | 16 | 25 | 40 |
| Water consumption(ton/h) | 0.7 | 1.5 | 3 | 4.5 | 8 |
| Installation power(kWh) | 190 | 340 | 390 | 520 | 920 |
| Space(m²) | 500 | 700 | 1000 | 1200 | 1500 |
| Man power(persons/shift) | 10 | 12 | 16 | 18 | 25 |
| Equipment List of PE/PP Rigid Plastic Recycling Washing Line | |
| Conveyor belt | Loading material |
| Crusher Machine | Crushing HDPE/PP/PC/ABS/PS rigid plastic into flakes |
| Screw loader | Loading material |
| Low Speed Friction washing | Remove chemical water/glue/dirty from flakes by friction principle and centrifugation |
| Floating washing tank | Washing flakes to remove dust, sands, sludge, soil and other sink contaminants |
| Screw loader | Loading material |
| Low Speed Friction washing | Remove chemical water/glue/dirty from flakes by friction principle and centrifugation |
| Zig-Zag separating | Remove dust/fines/labels |
| Dewatering Machine | Reduce the moisture content of the material to below 7 without melting |
| Thermal drying | Reduce humidity about 1-2% by adopting heating source from electricity and steam |
| Silo | Storage material |
| Electric control panel | Control the full line |

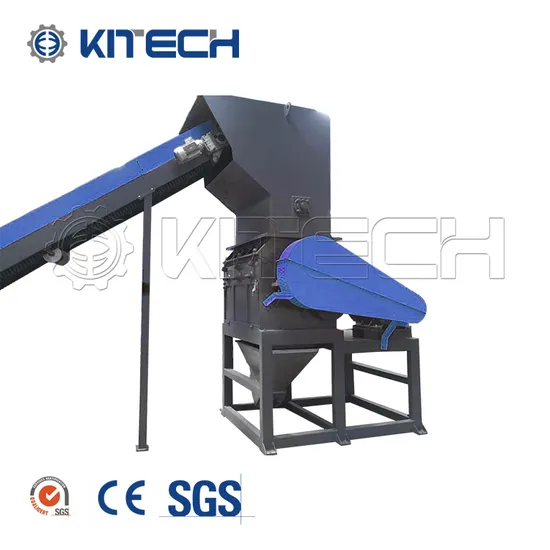

| Crusher Machine >>Cutting geometry: V-shaped arrangement of the rotor knives >>The chamber with wear-proof design Data: >>Model: AGF500/700 >>Rotor width: 700mm >>Rotor diameter: Φ500mm >>Rotor speed: 600rpm >>Drive motor: 30kW >>Screen size: 12/14mm >>No. of rotor knives: 5pcs x2 >>No. of stator knives: 2pcs >>Blades materials: D2 >>Hydraulic pusher: 3.7KW | |
| Screw Loader >>Conveying PE/ PP grinding materials >>Materials: S. S. 304 Data: >>Motor power: 2.2kW.4-P motor, AC >>Screw structure: "U" type >>Screw diameter: Φ250mm >>Screw flight: 5mm >>Screw body: 4mm | |
| Floating Washing Tank >>Clean materials by water, paddles and friction, Sludge and sands discharge by pneumatic valves >>Materials: S.S. 304 Data: >>Tank(Length x Width): 4.2mx 1.2m >>Tank Structure: Rolling paddles >>Top paddles motor: AC 0.37kW x 3 >>Bottom sucking pump: AC1.5kW >>Lift motor: 1.5kW | |
| Low Speed Friction Washing >> Strongly friction to clean the materials mechanically Data: >>Motor power: 11kW,6-P motor, AC >>Rotary Diameter: Φ300mm >>Rotary Speed: 700rpm >>Main Shaft: Φ114Χ12mm >>Bearing: NSK/Japanese brand >>Screen sieve: 2mm | |
| Dewatering Machine >>Drying materials by centrifugal force Data: >>Motor power: 15kW,2-P motor, AC >>Driving of motor: Star-Delta Start >>Rotary Diameter: Φ450mm >>Rotary Speed: 1800rpm >>Bearing: NSK/Japanese brand >>Screen sieve: 2mm >>Humidity remain ratio: 0.5-1.5%(depends on raw materials) | |
| Thermal Drying >>Further drying materials by hot air Data: >>Capacity: 500kg/h >>Heating power: 36KW >>Pipeline length: 17m >>Blower: 1.5kw >>Feeding fan: 7.5kw | |
| Silo >>For packaging materials Data: >>Fan Motor power: 5.5kW, >>Driving of motor: Directly >>Discharge of materials: Double outlet >>Discharge controlling: Pneumatic Valve >>Cylinder: SAL-CM-40*100-SD 8psc |
