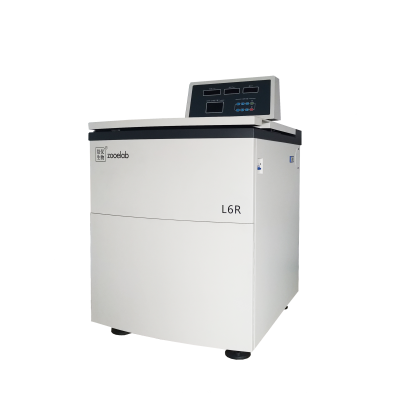

Note: The centrifuge host must be used together with the rotor. When purchasing, please add the host and the required rotor to the shopping cart and pay together. One host can be used with multiple rotors.Floor-standing large capacity refrigerated centrifuge L6R
Product introduction
◎ Superior performance: microcomputer control; preset: working program, centrifugal force, rotation speed, centrifugation temperature, centrifugation time, rotor model, and LCD synchronous display.
◎ Self-priming door lock, safe and convenient. ◎12-speed acceleration and deceleration control, the ninth-speed free stop time can reach more than 540S, the countdown is less than one minute and the countdown is displayed in seconds, which can meet the user's special deceleration needs.
◎ The key-type keyboard is used to set working parameters, and it can be equipped with a self-correcting balance rotor. When the rotor is out of balance, an error code will be displayed, an alarm will be displayed and the machine will stop automatically. There is no need to balance when the blood bag weight is 3-50g.
◎ The acceleration and deceleration time can be set within the allowable range according to customer needs.
◎ Driven by AC variable frequency motor, it runs smoothly, quietly, without maintenance.
◎ 30 free programming work program setting options, free to call, improve work efficiency.
◎ Adopt electronic door lock, 304 stainless steel inner cavity to prevent rust, three-layer steel structure to protect users' safety.
◎ Imported compressor unit, dual-circuit temperature control for cooling and heating, and unique cooling system to ensure the best cooling and heating effect of the instrument.
◎ During non-program operation, parameters can be changed arbitrarily without stopping the machine.
◎ Equipped with various protections such as overspeed, overtemperature, unbalance, door cover self-locking, etc., to ensure the safety of human and machine.
◎ The special horizontal square cup rotor for blood bank is 6×1000ml, which can separate 6 400ml five-unit blood bags at a time; 24 100ml platelet transfer bags, this machine is specially used for biopharmaceuticals, biological products, blood banks.
Technical parameters
Model: L6R
Maximum speed: 6000rpm
Support power supply: AC 220±22V 50Hz 64A
Maximum relative centrifugal force: 6680×g
Total power: 4500W
Maximum capacity: 6×1000ml
Overall noise:<65dB (A)
Timing range: 1min～99min59sec
Centrifugal chamber diameter: 600mm
Temperature setting range: -20℃～40℃
Dimensions (length × width × height): 830 × 730 × 1200 (mm)
Temperature accuracy: ±2.0℃
Speed accuracy: ±20rpm/min
Minimum acceleration/deceleration time: 180s/178s
Net weight: 230kg
Rotor parameters
