Basic Info.
Application
Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw
Portable Harvester Type
Backpack Type
Certification
QS, GMP, ISO9001:2008, CE
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Grain Tank Capacity
1.4m3
Min. Ground Clearance
325mm
Specification
5270*2500*2960mm
Product Description
Products Description

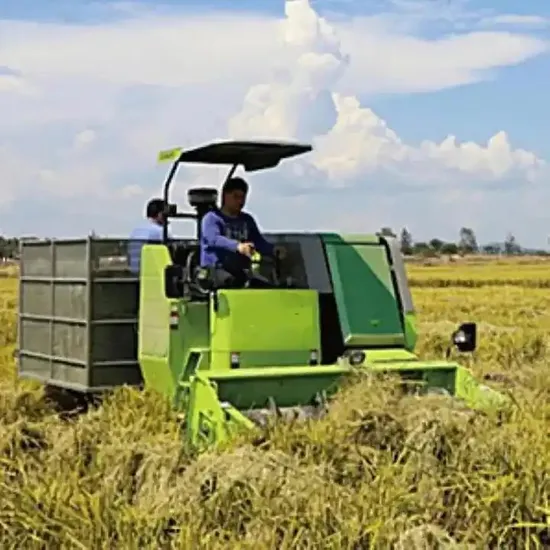

Agriculture Machine 4LZT-4.0ZD Crawler Wheat Combine Harvester
* Upgraded and optimized travelling system brings better trafficability in paddy field and higher efficiency.
* Chasis with higher ground clearance with min.clearance of 315mm, better trafficability in paddy field and higher efficiency
* Upgraded and optimized header conveying system, strong ability of handling crops, systematically solve the problem of troubled
feeding in longitudinal axis flow model
* New driveline system with reinforced and more reliable material
* 2SB belt is used as the conveying belt in conveying sink, with higher conveying efficiency and longer service life;imported
bearings are used in key parts with better reliability
* Screen widened to 1080mm, with 15% larger screening area, ensure perfect cleaning and very low impurity.
Product Paramenters
Model
| Unit
| 4LZT-4.0ZD
|
Dimension (L×W×H)
| mm
| 5270*2500*2960mm
|
Threshing drum(length*φ)
| /
| 2000mm×φ620
|
Cutting width
| m
| 2
|
Cleaning sieve
|
| 1.76
|
Feeding capacity
| kg/s
| 4
|
Efficiency
| acre/h
| 1.2~1.5
|
Engine power
| hp
| 88
|
Rubber track
| mm
| 500mm width*90mm pitch*53 section high stripe track
|
Fuel tank
| L
| 160
|
Grain tank capacity
| m³
| 1.4
|
Transmission
| /
| Mechanical+HST(Hyro-Static Transmission)
|
Min. ground clearance
| mm
| 325
|
Unloading Height
|
| 4m 270° rotary
|
Weight
| kg
| 3260
|
Harvesting Crops
| /
| Rice, Wheat, Corn, Soybeans, rapes
|
ROPS or Cabin
| /
| Safety shelf, optional drivier's cab
|
Product Pictures
