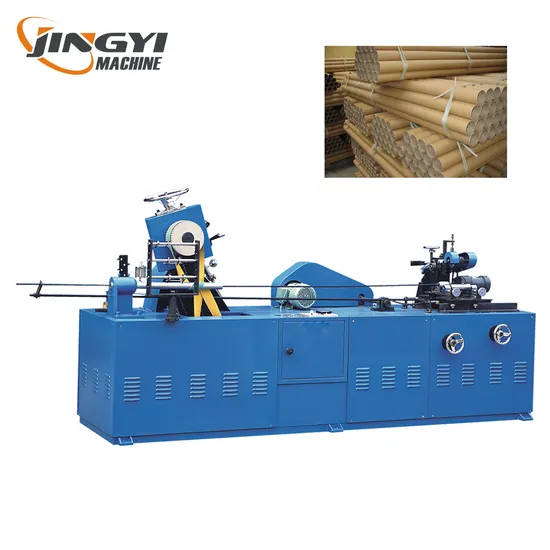

Automatic Kraft Paper Tube Making Machine for Toilet Paper Roll Core

Product Description

Automatic Kraft Paper Tube Making Machine for Toilet Paper Roll Core
Functions and features: this machine can auto cutting synchronously without stop machine. It possesses festures, such as auto drying, tight rewinding and so on. it's the prefered equipment for producing core for toilet paper, plastic PE film and N.W. With safety device, such as safety guard door, emergency stop and so on. Most of the parts are precisely processed by numerical-control machine, the key mechanical parts are under CNC processing; while the main outsourcing parts are famous brand. Main technical parameter:

Stable speed	0-15 m / min
Kraft paper width	50~70mm
Paper Tube diameter	30mm~60mm(can be customized)
Paper tube layers	2 ~ 3 layers(choose by customer)
Kraft paper gsm	200-400 gsm
Roll core Length	variable
Defect rate	≤2%
Voltage	380V 50HZ
Power	3.5KW
Overall Size	2500*1000*1500
Weight	1000Kg

Our workshop:
About the package and shipping:
Contact Us:
Quanzhou Jingyi Machinery Co.,ltd
Add: Jiangnan Street,Licheng District, Quanzhou,Fujian
Name: Martin Wu

---
