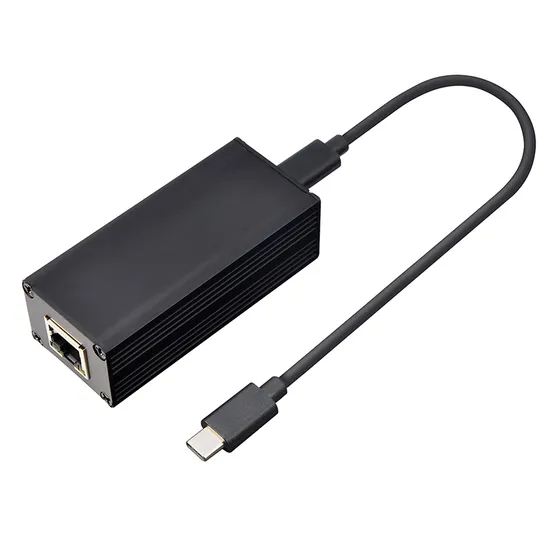

Poe to Type C Network Adapter Poe to USB-C Network Adapter

Product Description

10/100/1000Mbps Active 802.3af/at POE to Type-C network adapter Overview: TS0525TC is a 10/100/1000Mbps isolated POE to Type-C network adapter which compliant with IEEE802.3af/at standard. Charging Mobile phone/tablet while surfing the Internet, drive free plug and play Body Size:82*28*23mm,cable length 195mm. Standard isolation transformer 38~57V input. POE protocol:IEEE802.3af /at Transmission rate:10/100/1000Mbps Compliant with passive 48V-57V POE(45+,78- only) POE power output:12W (5V/2.2A typical value) isolation voltage:1500V POE pins:(1,2)+/(3,6)and(4,5)+/(7,8)auto adaptive Data pins(1,2)+/(3,6),(4,5)/(7,8) power output:Type-c male Picture and size(mm): Electrical parameters:

Voltage input	Active POE 802.3af/at
Parameters	Minimum	Typical	Max
V-input	38Vdc	51Vdc	57Vdc
V-output	4.95V	5V	5.3V
Current output	1.9A	2.0A	2.4A
output ripple	200mV Max
Efficiency	85% above
Short circuit protection	Support

Electrical properties (Ta=25ºC)

Item		Parameter		Unit
environment:
Work temp.			-10~70	ºC
Storage temp.			-30~85(less than 1 month)	ºC
			-30~80(less than 3 month)	ºC
			-25~75(more than 3 month)	ºC
Storage humidity			5~95	RH
Protection circuit
Maximum input voltage		57.0		V
Minimum input voltage		38.0		V
Discharge protection current		2.35		A
Conversion circuit:
Output voltage (no load)		No pressure drop when no load		5.2V
Output voltage (full load)		Pressure drop is 0.3v		4.9V
Maximum output current		2.4		A
		2(typical)		A
Conversion efficiency		Typ. ≥85%
transformer		1500		V

5. Material requirements
The contents of this specification meet the requirements of eu RoHS directive, and the content of harmful substances meet the following standards:

Harmful substances	mg/kg
Pb	1000
Cd	100
Hg	1000
Cr6+	1000
PBB	1000
PBDE	1000

---
