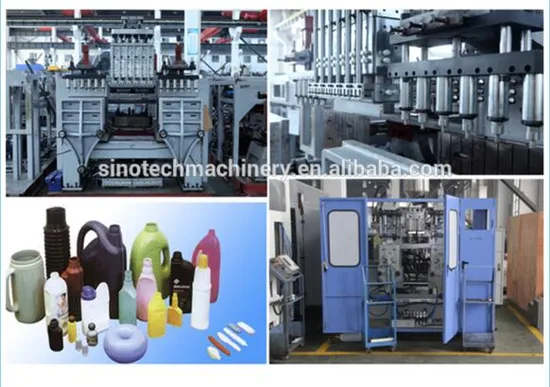

5L HDPE Motor Oil Bottle Automatic Extrusion Blow Molding Machine

Product Description

5L HDPE Motor Oil Bottle Automatic Extrusion Blow Molding Machine

Details for plastic drum Blow Molding Machine :
1). Barrel blow molding machine experience for more than 12 years
2). Machine produce the max for 60L jerrycan
3). The capacity is about 55pcs/h.
4). The famous imported components for machine
5). Taiwan Yuken hydraulic valve for stable working
6). The deflashing system can be equiped according to customer's request.
2. Main characteristics of HDPE plastic drum Blow Molding Machine :
1). Accumulator head, single layer, the capacity is up to 60L jerrycan, drum.
2). It process the material as HDPE, PP, ABS and etc.
3). Power supply: 380VAC, 50Hz (depending on client's county ).
4). The machine is mainly composed of extrusion system, die head system, clamping system, hydraulic system and electrical systems:
General Information for this Barrel Blow Molding Machine Plastic Barrel Extrusion Blow Molding Machine:
Extrusion system: Screw: Specially designed based on material's trait, High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥ 800, brittleness≤ 2. Barrel: High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥ 900, brittleness≤ 2.
Die head system: Accumulator die head, single cylinder, central injection, vertical fist in first out design, accumulator channel slick; Slip parts like injection piston and cylinder made with different material and technique, work balanced and reliable.
Clamping system: Fixed clamping system, double diagonal tie bar single cylinder central clamping, wider space for the mould, install and dismantle the mould easily, linear roll guide rail.
Hydraulic system: Adopted proportional pressure controlling, with hydraulic valve and pump of Taiwan Yuken, balanced and accurate action, prolonged useful life, sensitive response.
This Barrel Blow Molding Machine Plastic Barrel Extrusion Blow Molding Machine is mainly used to produce 60L barrel,drum, chemical drum and oil drum. Some basic parameters for this Barrel Blow Molding Machine Plastic Barrel Extrusion Blow Molding Machine are as follows:
1. Screw diameter: 90mm
2. L/D ratio: 30/1
3. Max capacity: 60L
Dry cycle: 180pc/h
Clamping force: 320KN
Platen open stroke: 450-1050mm
Plasten size: 900*880mm
Max platen size: 900*880mm
Oil Pump Power: 15kw
Extrusion motor: 37KW
Plasticizing capacity: 140kg/h
Heating zone: 4 zones
Extrusion heating power: 21.3kw
Power of Die heating: 21.4kw
Max die pin diameter: 350mm
Accumulator head capacity: 6.6L
Packing & Shipping
Why Choose us ?
Any question,please call me.
MOB&waspp: +8613773240086

---
