| US$13,000.00-30,000.00 | 1 Piece (MOQ) |

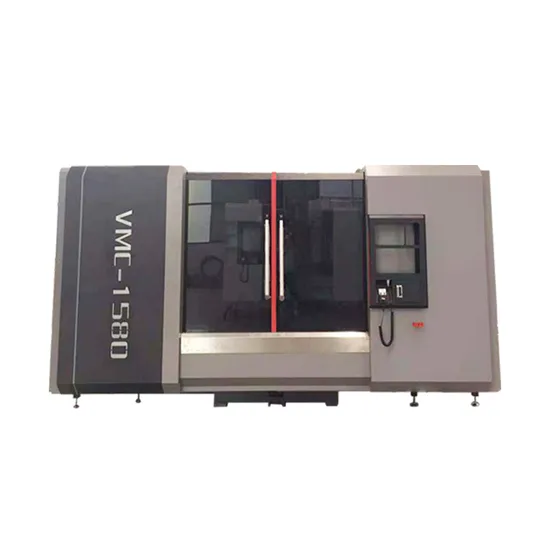

| ITEM | TB-LV1580 | TB-LV1580A | ||||
| WORKTABLE SIZE(L×W)(MM) | 800X1600 | 800X1600 | ||||
| MAX. X AXIS TRAVEL(MM) | 1500 | 1500 | ||||
| MAX. Y AXIS TRAVEL(MM) | 800 | 800 | ||||
| MAX. Z AXIS TRAVEL(MM) | 700 | 700 | ||||
| DISTANCE FROM SPINDLE CENTER TO COLUMN (MM) | 855 | 862 | ||||
| RANGE OF SPINDLE NOSE TO WORKTABLE | 190-890 (BT40-Φ150) | 160-860 (BT50-Φ155) | 185-885 (BT50-Φ190) | 185-885 (BT50-Φ190) | ||
| WORKTABLE SPACINGOF T-SLOTS(NUMBER-WIDTH×DISTANCE) | 7-22x110 | 7-22x110 | ||||
| SPINDLE(MODEL /DIAMETER) | BT40/Φ150 (OPTIONAL) | BT50/Φ155 (STANDARD) | BT50/Φ190 (OPTIONAL) | BT50/Φ190 (STANDARD) | ||
| SPINDLE SPEED | 8000(BELT) 12000(DIRECT) | 8000(BELT) | 6000(BELT) | 6000(BELT) | ||
| X.Y.Z AXIS BALL SCREW SPECIFICATION | X:5010 Y:5010 Z:5010 | X:5010 Y:5010 Z:5010 | ||||
| X.Y.Z AXIS RAPID SPEED (MM/MIN) | X:20000 Y:20000 Z:20000 | X:20000 Y:20000 Z:20000 | ||||
| X.Y.Z AXIS SPEED (MM/MIN) | 1-10000/1-10000/1-10000 | 1-10000/1-10000/1-10000 | ||||
| X AXIS LINEAR SPECIFICATION | RGW55HC | RGW55HC | ||||
| Y AXIS LINEAR SPECIFICATION | RGW45HC | RGW45HC | ||||
| Z AXIS LINEAR SPECIFICATION | RGW55HC | RECTANGULAR ROLLER | ||||
| X.Y.Z AXIS COUPLING | BK3-200 | BK3-200 | ||||
| X/Y/Z AXIS MOTOR CONNECT WAY | DIRECT | DIRECT | ||||
| RECOMMNED SPINDLE MOTOR POWER(KW) | 11 | 15 | 18.5 | 15/18.5 | ||
| RECOMMEND X.Y.Z AXIS MOTOR POWER(KW) | ≥4.29/4.29/4.29 | ≥4.29/4.29/4.29 | ||||
| RECOMMEND X.Y.Z AXIS MOTOR TORQUE(NM) | ≥27/27/27(BRAKE) | ≥27/27/27(BRAKE) | ||||
| GUIDE RAIL COVER BRACKET(X/Y/Z)(MM) | X-650/Y-280/Z-285 | X-650/Y-280/Z-285 | ||||
| BED CUSHION HEIGHT(MM) | 50 | 50 | ||||
| MAX LOADING OF WORKTABLE(KG) | 1500 | 1500 | ||||
| DIMENSION(MM) | 3850x2720x3000 | 3850x2720x3000 | ||||
| FRAME WEIGHT(KG) | 7500 | 8400 | ||||
