Semi Automatic Type 300ml to 3L Pet Water Bottle Blowing Molding Blower Machine

Product Description

Semi Automatic Type 300ml to 3L PET Water Bottle Blowing Molding Blower Machine
BM-8Y semi automatic PET bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100-3000ml. It is widely used to produce the carbonated bottle, mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Engineering item:
1. Capacity:1500pcs/hour for 500ml; 1000pcs/h for 3L.
2. Volume of product: 100ml -3000ml (all bottles neck diameter should be same)
3.Application: Water bottle, medicine bottle, oil bottle.
4.Work stuff: 2 workers
Equipment list:

NO.	NAME	MODEL	QTY

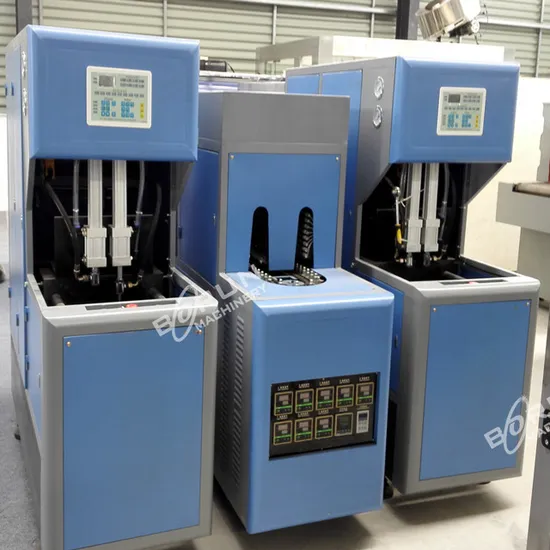

1	Semi-automatic PET bottle blow molding machine (one oven+two blowers)	BM-8Y	1set
2	Blowing mold	100ml-3L	1set
3	High pressure Air Compressor	1.2m3/min 30Kg	1set
4	Air dryer	2.0 m3/min 30Kg	1set
5	Air filter	2.0m3/min 30kg	2sets
6	Low pressure air compressor	1.2m3/min 30Kg	1pc

*Spare parts List :
Seal cushion(10pcs);Lamps(10pcs);Fuse(3pcs);Switch(1pcs);breaker(1pcs);Silicon controlled (1pcs)
pressure adjust (1pc)
Features:
· Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
· The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
· The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
· The machine can be operated in the step-by-step mode and the semi-auto mode.
· The machine is small with low investment, easy and safe to operate.
Technical Parameter of blow molding machine:

Name	Item	Unit	Details
Blowing machine	Dimension	mm	1600*600*1610mm
	Weight	kg	500
	Bottle volume (max)	ml	2000
	Bottle volume (min)	ml	50
	Bottle Neck Diameter (max)	mm	40
	Bottle Neck Diameter (min)	mm	18
	Body Diameter (max)	mm	125
	Body Height( max)	mm	420
	Number of Cavities	mold	2
	Production output	pcs/h	1600-1800BPH
	Clamping force	T	5.7(56KN)
	Mold thickness	mm	200(max)
	Mold width	mm	360x390
	Space between Tie-bars	mm	120-220
	Diameter of Tie-bars	mm	63
	Scope of Tie-bars	mm	405
	Mold stroke	mm	160
	Stretching stroke (max)	mm	420
	Working pressure	Mpa	0.8-1.0Mpa
	Blowing pressure	Mpa	2.0-3.0Mpa
	Voltage/Power	V/KW	220V/1KW
	Weight	Kg	500
Pre-heater	Dimension	mm	1870*630*1450mm
	Weight	kg	260
	Voltage/Power	V/KW	380V/14KW

HP air compressor:

Air compressor	Unit	1.2M3/min 30KG
Volume	M3	1.2
Pressure	Kg	30
Speed	r/min	850
Power	KW	15
Overall Dimension	mm	2000*1100*1600
Weight	kg	620

Air Filter:

Refining-Filter	Unit	1.0M3/30Kg
Flow Capacity	M3/Min	1
Max. work pressure	Mpa	3.0
Inlet Temp.	ºC	≤50
Cold Medium	mm	650*250*250
Weight	Kg	15

Air dryer:

Refrigeration Air Dryer	Unit	2.0M3/min 3.0Mpa
Flow capacity	Nm3/min	2.0
W.P	Mpa	3.0
Inlet Temp.	ºC	≤80
Dew point	ºC	23
Ambient Temp.	ºC	≤38
Power supply	V/HZ	220/50
Compressor power	Kw	0.75
Cold Medium	mm	1050×650×1100
Weight	Kg	120

water chiller:(optional)

Model		03WCI
4.4/38ºC Cooling capacity(Kcal/h)		7188
Compressor		All-closed vorticity
Compressor power (KW)		2.5
Refrigerant		R22
Chilled water pump power(KW)		0.75
10ºC Max. flow rate of chilled water(L/min)		55
Flow water inlet and outlet pipe		1''
Condensing water rate L/min		≥36
Chilled water inlet and outlet pipe		1''
Exterior dimension	Length(mm)	1000
	Width(mm)	600
	Height(mm)	1180
Water tank capacity	L	50
Weight	Kg	150
