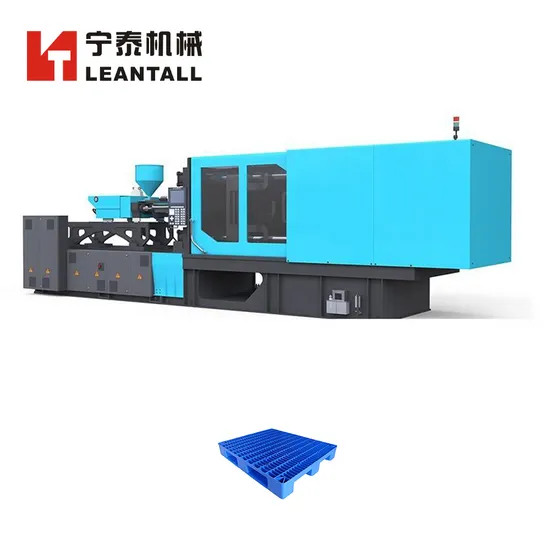

Nt-1700 Injection Molding Machine Clamp Force 17000kN Big Plastic Trash Can Making

Product Description

Product Parameters

Part	Name	Unit	NT1700
Injection Unit	SCREW DIAMETER	mm	135	145	155
	SCREW L/D RATIO	L/D	23.5	21.5	20.1
	INJECTION STROKE	mm	770	770	770
	NJECTION SPEED	Mm/sec	94	94	94
	SHOT VOLUME(THEORETICAL)	CM3	10019	11558	13208
	INJECTION WEIGHT(PS)	g	9117	10517	12019
	INJECTION PRESSURE	Mpa	175	152	133
	INJECTION RATE	cm³/sec	1345	1552	1773
	SCREW SPEED	rpm	100
Clamping Unit	CLAMP FORCE	Kn	17000
	OPEN STROKE	mm	1580
	SPACE BETWEEN TIE BARS	mm×mm	1620X1480
	MAX.MOULD HEIGHT	mm	1550
	MIN.MOULD HEIGHT	mm	600
	EJECTOR STROKE	mm	425
	EJECTOR FORCE	Kn	407
	EJECTOR NUMBER	N	21
Others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	65+65+44
	HEATING POWER	Kw	85
	MACHINE DIMENSION(L*W*H)	m×m×m	14.1*3.3*3.3
	MACHINE WEIGHT(ESTIMATE)	T	98

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
