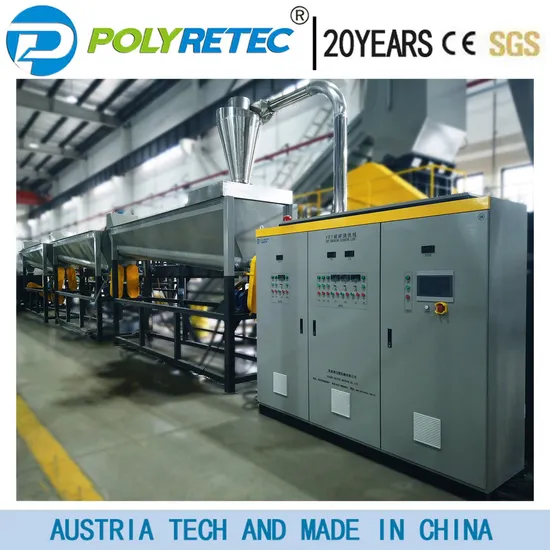

Pet Flakes Washing Machine Pet Bottle Crushing Machine Plastic Bottle Recycle Line

US$30,000.00-400,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PTC1000-6000
Material Processed
Plastic Bottle
Plastic Type
PET
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
CE
Material
SUS304
Motor
Siemens
Electrical Appliance
Siemens
Delivery Time
30-60 Days
National Patents
20+
Working Experience
15+ Years
Sample Project
Available
Exporting Countries
Worldwide
Advantages
Less Energy Consumption, Smart Control
Final Products Water Content
Less Than 2%
Supply Voltage
3*380V+N+PE; Customized
Frequency
50Hz; Customized
Flakes Quality
Food Grade
Color Sorter
European Brand
Required Steam
700kg/H
Transport Package
Standard Export Package
Specification
500kghr, 1000kghr, 2000kghr, 3000kghr
Trademark
POLYTEC
Origin
China
HS Code
84778000
Production Capacity
100 Sets/Year

Packaging & Delivery

Package Size
1000.00cm * 500.00cm * 500.00cm
Package Gross Weight
320000.000kg

Product Description

Product Description
PROJECT INTRODUCTION
Bottle-to-Bottle grade PET bottle washing line makes the sustainable development of PET bottle resource recovery come true.
The global PET resources are being exhausted,but its demand is increasing year by year.The over exploitation of petroleum has caused irreparable damage to the natural and earth,human beings are suffering from nature.
Sustainable development of PET resources recovery has been a major issue in the PET recycling industry.Full utilization of PET resources and 100%recovery of PET resources to achieve sustainable development is the ultima goal of recycling.At present,the mainstream process to realize the recycling of PET bottles(containers)is physical -consumer PET bottles are collected from urban,it is recycled into rPET flakes by washing and crushing which rPET flakes can be used to manufacture food-grade chips.This kind of rPET flakes meets the
standard of FDA which is available to contact food and beverage directly.
01 - Features


We have several different standards of PET bottle crushing washing machine line according to different production capacity and cleaning requirements. The PET bottle crushing washing recycling machine line has a capacity of 300-5000kg/h.
Highlights:
1.Solutions for diversification of input PET bottle bales.
2.Automatic de-baling technology,reduces labor,a strong bale breaking ability for high-density PET bottle bales.
3.Patent technology for PVC label removal.
4.Patented Pre-washing and hot washing process to ensure the cleanliness of rPET flakes.
5.Integrated technology and capability for automatic sorting machine and PET bottle recycling line.
6.The hot washing process reduces impurities content to achieve food-grade index.
7.Stable and reliable quality of rPET flakes,online inspection to ensure the stability of rPET flakes.
8.Completed online water recycling treatment system for pre-washing,hot-washing and rinsing.
9.Low operation breakdown,production management guidance service for customer



02 - Process flow
Food Grade PET Bottle Recycling Process:
De-baling→Metal Removal-→Label Removal--→Metal Removal--→Bottle Pre-washing→Optical Bottle Sorting→Manual Sorting→Crushing→Dust Removal-→Flotation Hot washing→Friction Washing→Rinsing→Flushing
Washing→Drying→Dust Removal-→Optical Flakes Sorting→Blending→Online Inspection-→Packing
Ps.A standard sampling of food-grade PET bottle recycling process,equipment configuration and the process will be optimized according to raw materials

03 - Unit Introduction
04-Project cases


05- Project parameters
Estimated plant parameters :
Input capacity (kg/h) Required area() Install power
(kw)
Required water
(m³/h)
Required steam
(kg/h)
Required compressor air(/min) Man power
1000 1300 550 2 600 3 5
2000 1600 800 4 900 4.5 7
3000 2000 900 4.5 1300 6.5 8
6000 3000 1000 9 2300 12 11

*water consumption parameters are calculated based on using wastewater reuse system.
*PET bottle material composition and factory management level will affect actual consumption .
Production consumption table-average energy consumption per ton flakes:
Input capacity (kg/h) Electricity consumption
(KWH)
Steam
(kg)
Washing detergent
(kg)
Water consumption
(ton)
1000 170 600 12 1.5
2000 165 550 12 1.5
3000 160 500 12 1.5
6000 150 450 12 1.5

PET Flakes Quality Standard Reference Table:
Moisture <1%
Label <15ppm
Pvc <30ppm
Inorganic compounds <10ppm
Glue <10ppm
PH 7.5±0.5
PP/PE <15ppm
Metal <10ppm
Total impurity <100ppm
*Flake size 12mm

*Flakes size can be specified by customers
06 - Advantages
1. Solutions for diversification of input PET bottle bales. 2. Automatic de-baling technology, reduces labor, a strong bale breaking ability for high-density PET botle bales 3. Effective PVC label removal. 4. Pre-washing and hot washing process to ensure the cleanliness of rPET flakes. 5. The hot washing process reduces impurities content to achieve high stable and reliable quality of rPET flakes. 6. Completed online water recycling treatment system.
Downstream Applications of Food Grade rPET Flakes:
rPET flakes
rPET chips
Preform
rPET
Beverage
Container
Bottles
After Sales Service

Address:zhangjiagang city ,jiangsu province ,china Why POLYTEC more suitable for your investment?
With Austrian Technology & Made in China Use our own factories to manufacture waste plastic recycling machines(plastic washing line and pelletizing line) - better quality control With CE certificate, can meet ULstandard Quick machine service Intelligent machine control Low energy consumption, high output Equipped with a complete water treatment system
