5 Layer Fabric Belt Making Machine 4 Layer Nylon Conveyor Belt Processing Line

Product Description

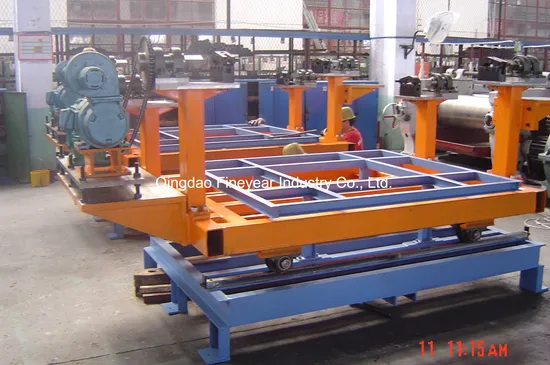

Conveyor belt constant tension laminating machine
1.Usage: For laminating and preforming of fabric rubber conveyor belt.
2.Technical Parameter:

Main parametrs Type	Forming speed m/min	Max. forming width (mm)	No. of joint layers	Max. roll diameter mm	Control mode
DCS-(1400~1800)	2.5~25	1600	3	3500	PLC+GOT
DCS-(2000~2400)	2.5~25	2200	3	3500	PLC+GOT
DCS-(2400~3200)	2.5~25	3000	3	3500	PLC+GOT

3.Feature:
1). Production line use PLC control. This production line adopts a technology which combines vector variable frequency control and intelligent tension let off. This technology will give intelligent control for constant tension in the production.
2). Production line use EPS auto correction technology which features fast response and precisely positioning control.
3). To avoid safety accident, production line has complete safety measures, workers are able to stop the production line immediately at any operating point.
FINEYEAR specializes in developing and manufacturing high quality conveyor belt constant tension laminating machine, which is one of the best and professional manufacturers of various high quality machinery. We have a productive factory, welcome to wholesale quality conveyor belt constant tension laminating machine at cheap price with us.
Hot Tags: conveyor belt constant tension laminating machine China, manufacturers, factory, wholesale, cheap, rubber conveyer belt production line

---
