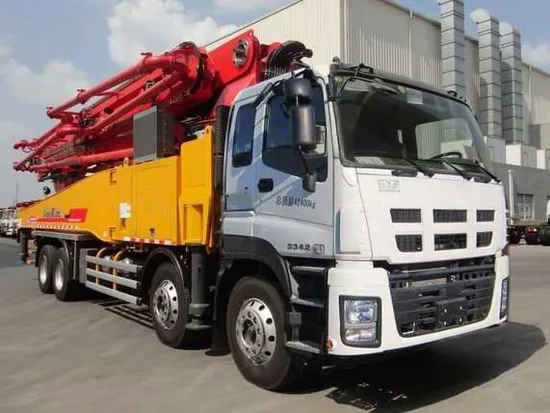

30m Pump Truck Hb30V Mobile Truck-Mounted Concrete Pump for Sale

Product Description

Product Description
30M Pump Truck HB30V Mobile Truck-mounted Concrete Pump for Sale

HB30V Mobile Truck-mounted 30m Diesel Concrete Pump Truck Price
Truck-Mounted Concrete Boom Pump is a convenient and efficient dedicated construction machinery for transporting and concreting concrete, which has features of short construction period, large spreading range, low labor strength and operation in confined space. It is widely used in high-rise construction, underground construction and large concrete construction.
1. The adoption of new multi-section boom design optimized by bionic technology effectively reduces placing blind zone and better adapts to placing in high-rise and narrow space.
2. On the basis of the design concept of high rigidity structure, simulative calculation and testing of full-work-condition loading make chassis structure deformation smaller and overall work stability higher.
3. Based on laser guide, coaxial assembly makes piston head's moving track more precise, with smaller resistance and higher efficiency.
4. SCHWING Germany's hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero pollution.
Product Parameters

Category	Item	Unit	HB30V
Overall	Outline dimension	mm	10190*2500*3700
	Overall weight	kg	20000
Chassis	Model	-	ZZ5207M521GE1
	Wheelbase	mm	5200
	Max.power	kW	203
	Emission standard	-	China V
Pumping system	Theoretical	m³/h	100
	Concrete pumping pressure	MPa	8
	Theoretical pumping times	Times/min	25
	Delivery cylinder diameter x stroke	mm	φ230×1600
Placing boom	Reach height	m	29.6
	Reach depth	m	18
	Slewing radius	m	25.7
	Slewing angle	°	360
Others	Transfer tuble	-	Rock valve
