VTC850 high quality Conventional Single Column CNC Vertical lathe machine price

Product Description

VTC850 high quality Conventional Single Column CNC VTL Vertical lathe machine Product Description

Product Parameters
Technical specifications:

SPECIFICATIONS	Units	VTC850
Max Swing Diameter over bed	mm	900
Max Swing Diameter over cross slide	mm	850
Spindle nose	-	A2-11
Spindle bearing configuration	-	thrust roller bearing
Spindle load	kg	800
Spindle speed range	rpm	50-800
Max.torque of spindle	NM	885
Spindle chuck diameter	mm	630( Hydraulic)
Max. tool post travel (vertical)	mm	650
Max. tool post travel (horizontal)	mm	-50-500
Distance between tool post and chuck surface	mm	100-750
X axis rapid traverse	mm/min	15000
Z axis rapid traverse	mm/min	12000
Cutting feed speed	mm/min	0.1-5000
X axis motor power	kw	2.4
X axis motor torque	NM	15
Z axis motor power	kw	2.8
Z axis motor torque	NM	18
Turret/tool post	-	8Hydraulic turret
Tool size	mm	30*40
Main motor power	kw	22/30
Positioning accuracy	mm	±0.008
Repeat positioning accuracy	mm	±0.005
Machine weight	kg	8800
Overall dimensions	mm	2800*2000*3200

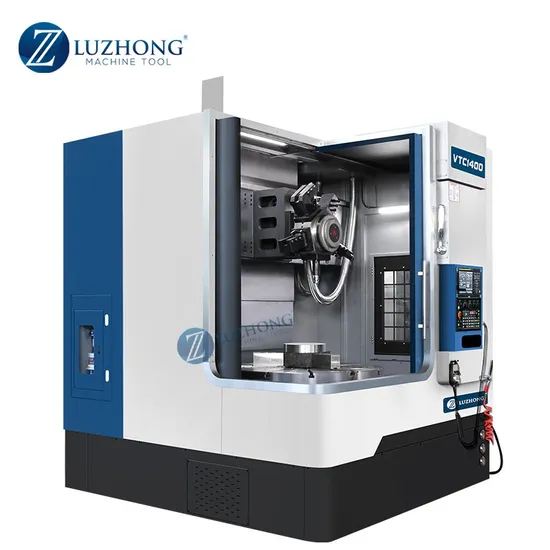

Detailed Photos

Company Information

Contact Us
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
