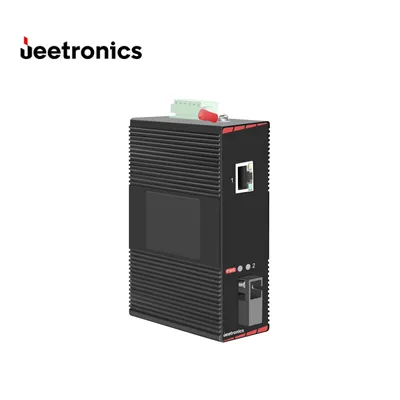

Tx1310/Rx1550nm SMF 20km Single Sc Unmanaged Industrial Media Converter

Product Description

JTFA101-B35S20
1x 10/100Base-TX to 1x 100Base-FX (TX1310/RX1550nm SMF 20km Single SC) Unmanaged Fast Ethernet Industrial Media Converter Complies with IEEE 802.3 , IEEE 802.3u , IEEE 802.3x 1x 10/100Base-TX 1x 100Base-FX Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Redundant Power Design Power Polarity Reverse Protection Overload Current Protection Extends fiber distance up to 20km Operating Case Temperature : -40~75C DIN-Rail or Wall Mountable IP30 Corrosion resistant aluminum case

Data Rate	10/100Mbps
Device Type	Unmanaged
Form Factor	/
Interface Characteristics
Copper Interface	1x 10/100Base-TX
Fiber Interface	1x 100Base-FX
Wavelength	TX1310/RX1550nm
Media	SMF
Distance	20km
Connector	Single SC
LED indicators	PWR (power supply);
	FL/A (optical link/action)
	FDX (FX full duplex),
	TL/A (twisted pairs link/action)
	100 (100M transmission rate of twisted pairs),
	FX (100M transmission rate of optical fiber)
Technology
Standards and Protocols	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3x Full duplex and flow control
Processing Type	Store and Forward
Flow Control	Half-duplex back-pressure-and IEEE 802.3x full-duplex flow control
Power
Power Input	DC 12~52V
PoE Standard	/
PoE Power Budget	/
Power Consumption	<4W
Protection	Overload current protection
	Reverse polarity protection
Switch Properties
Switching Capacity	0.4G
Forwarding Rate	0.1488Mbps
MAC address table	2K
Packet Buffer	256K
Jumbo Frame	9K
Delay	<3μs
Physical
Casing Mat.	Aluminum, IP30
Dimensions	118 x 86 x 39mm
Installation	DIN-Rail
Environmental	Operating temperature : -10~55ºC
	Storage Temperature: -40~85ºC
	Relative Humidity: 5% to 95% non-condensing
Regulatory
ISO	Manufactured in ISO-9001 facility
Safety & Emission	CE, FCC, RoHS
EMI	FCC Part 15B Class A
	EN 61000-6-4
	EN 61000-3-2
	EN 61000-3-3
EMS	EN 61000-6-2
	EN 61000-4-2 (ESD Standards)
	EN 61000-4-3 (Radiated RFI Standards)
	EN 61000-4-4 (Burst Standards)
	EN 61000-4-5 (Surge Standards)
	EN 61000-4-6 (Induced RFI Standards)
	EN 61000-4-8 (Magnetic Field Standards)
Stability	IEC 60068-2-6 Fc (Vibration)
	IEC 60068-2-27 Ea (Shock)
	IEC 60068-2-32 Ed (Free fall w/package)
Realiability
MTBF	>50,000Hrs

Ordering information :

P/N	Category	Device Type	Copper Interface	Fiber Interface	Wavelength	Media	Distance	Connector	Power Input
JTFA101-P	Industrial Media Converter	Unmanaged	1x 10/100Base-TX	1x 100Base-FX	Based on SFP Spec	Based on SFP Spec	Based on SFP Spec	SFP Port	DC 12~52V
JTFA101-13S02	Industrial Media Converter	Unmanaged	1x 10/100Base-TX	1x 100Base-FX	1310nm	MMF	2km	Dual SC	DC 12~52V
JTFA101-13S20	Industrial Media Converter	Unmanaged	1x 10/100Base-TX	1x 100Base-FX	1310nm	SMF	20km	Dual SC	DC 12~52V
JTFA101-13S40	Industrial Media Converter	Unmanaged	1x 10/100Base-TX	1x 100Base-FX	1310nm	SMF	40km	Dual SC	DC 12~52V
JTFA101-15S60	Industrial Media Converter	Unmanaged	1x 10/100Base-TX	1x 100Base-FX	1550nm	SMF	60km	Dual SC	DC 12~52V
JTFA101-15S80	Industrial Media Converter	Unmanaged	1x 10/100Base-TX	1x 100Base-FX	1550nm	SMF	80km	Dual SC	DC 12~52V
JTFA101-15S100	Industrial Media Converter	Unmanaged	1x 10/100Base-TX	1x 100Base-FX	1550nm	SMF	100km	Dual SC	DC 12~52V
JTFA101-B35S20	Industrial Media Converter	Unmanaged	1x 10/100Base-TX	1x 100Base-FX	TX1310/RX1550nm	SMF	20km	Single SC	DC 12~52V
JTFA101-B53S20	Industrial Media Converter	Unmanaged	1x 10/100Base-TX	1x 100Base-FX	TX1550/RX1310nm	SMF	20km	Single SC	DC 12~52V
JTFA101-B35S40	Industrial Media Converter	Unmanaged	1x 10/100Base-TX	1x 100Base-FX	TX1310/RX1550nm	SMF	40km	Single SC	DC 12~52V
JTFA101-B53S40	Industrial Media Converter	Unmanaged	1x 10/100Base-TX	1x 100Base-FX	TX1550/RX1310nm	SMF	40km	Single SC	DC 12~52V

Certifications
