Efficient Roller Rings for Metal Straightening Applications HSS Rolling Ring for Kocks Mill

Product Description

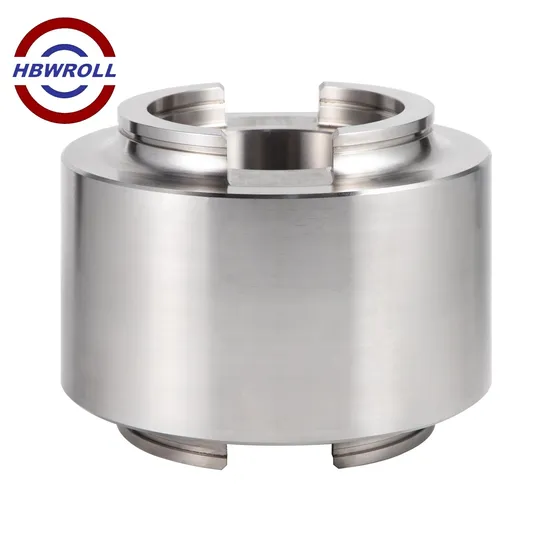

Cantilever Ring
Brand	HBW ROLL	Material Code	HBWr02
Specification	Ø200-Ø550	Hardness	61-64HRC
Hardness Drop	≤3HSD	Rolling Temperature	900ºC-1050ºC
Features & Advantages	1. Less re-machining amount, can be used for 8-10 cycles.
	2.Total steel pass life can reach 4 times than cast iron rings, with high cost performance
	3.High wear resistance and impact toughness under thermal load
	4. No cracking or bursting phenomenon
	5. Good processability with high machining efficiency
Application	All finishing stands of the cantilever mill

Material

HBW Patented Chemical Composition (%)

C

Si

Mn

Cr

Ni

Mo

V

W

P & S

Nb

Co

Others

HSS in general

1.5-2.10

0.30-0.7

0.30~0.70

3.00~ 6.00

0.50~ 1.50

3.0-7.0

2.0-8.0

1.0-8.0

≤0.03

Depends on HSS Grade

Properties	Barrel	Core
Tensile Strength	≥700MPa	≥450MPa
Compressive Strength	≥2500MPa	--

Micro structure
* Excellent Technical of HBW's Patented Casting and HT Process Guarantee the Superior Micro-structure of each HSS Rolls.
* Metallographic Micrograph are available to supply in HBW.
Unique Features:
* Entire HSS material only instead of composite material
* Rings in pairs or triple cutting from the same roll barrel, keeping uniform performance
* HBW patented chemical component proportion
* High hardness and excellent wear resistance
* Extremely less dressing amount.
Company Profile
Packaging & Shipping
Business partner
Certifications
Quality control
Apllication
FAQ
Q: What products you can offer? A: Our main products are High Speed Steel (HSS) Mill Rolls and Rings. Our HSS Roll is use for Hot Rolling Mill of Bar Steel Strip Steel Angle-Section Steel H-Section Steel, etc.Our HSS Rings is for KOCKS/ PSM / DSD / Seamless Steel Tube /Cantilever and Section Steel Mill.
Q: What is the MOQ of your products?
A: No MOQ.
Q: Can you supply according our requirement?
A: Yes, we can provide the products according your requirement, such as drawings. hardneess drop Steel Pass Capacity etc.. We also have technical team which can provide technical service
Q: Can you put my logo or website on products?
A: Yes, we can lettering your part number, logo, website or batch number on products according to your request.
Q: How do you control the quality of products?
A: Design products with Professional and suitable Aolly Composition→Experienced Casting & Heating Treatment,Strictly Inspection according to the drawings with Chemical Analysis / Multiple Ultransonic Flaw Detection /Metallography /Dye Penetrate Inspection /Hardness and Dimension testing for each product.
Q: Do you have warehouse or stocks in other countries?
A: No at this moment.

Don't see what you need? Our experienced team of engineers can design it for you. Contact our HBW Engineers for further assistance.

---
