550W Capacitor High Static Pressure Electric AC Fan Coil Motor for Condenser Central Air-Conditioning

Product Description

Product Description

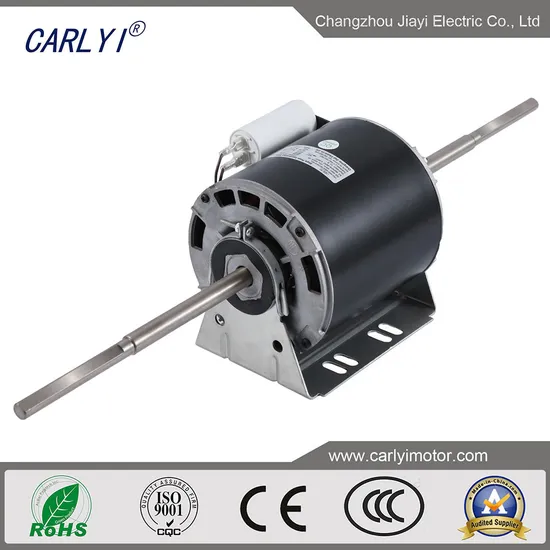

Capacitor High Static Pressure Electric AC Fan Coil Motor for Central Air-Conditioning
The above mentioned specification is representative specification,can also be designed and manufactured according to customer requirements.
Main Technical Data of Capacitor High Static Pressure Electric AC Fan Coil Motor for Central Air-Conditioning :

Type	Voltage	Frequency	Output	Current	Speed	Insulation
Unit	V	Hz	W	A	r/min	Class
YSK-200-4	220	50	200	1.65	1200	B
YSK-250-4	220	50	250	2.70	1320	B
YSK-300-4	220	50	300	2.95	1100	B
YSK-370-4	220	50	370	3.10	1070	B
YSK-400-4	220	50	400	3.80	1230	B
YSK-450-4	220	50	450	4.70	1200	B
YSK-500-4	220	50	500	4.80	1230	B
YSK-550-4	220	50	550	4.50	1230	B
YSK-750-4	220	50	750	5.00	1230	B

low noise, Quiet operation, Little vibration	IP 20/44 protection level, Automatic overload, Thermal protection	High efficiency, wide speed adjustment range	Ball bearing, Reversible plug for easy rotation, Quick installation

Materials
Silent bearing , capacitor , copper wire

Application
Application
air conditioner indoor pipe fan Product Parameters
Drawing of Capacitor High Static Pressure Electric AC Fan Coil Motor for Central Air-Conditioning:
Recommendation
Main Products of Capacitor High Static Pressure Electric AC Fan Coil Motor for Central Air-Conditioning: Terms
Terms:
1. Trade Terms: FOB, CIF, CNF, EXW, DOOR TO DOOR.
2. Payment Terms: T/T, L/C, Western Union.
3. Payment Condition: 50% deposit in advance, 50% balance before delivery.
4. Delivery Time: 15-30 days after deposit (if T/T).
5. Shipping: By sea, by air and by express delivery
Company Profile

Changzhou Jiayi Electric Co., Ltd was established in 2013. Is a manufacturer focused on innovative motor solutions for the residential and commercial HVAC and refrigeration industries. The company has a skilled R & D team, and has more than 10 years of motor research and development, design, production and sales experience.With an annual output of 1 million motor production capacity. The new generation of BLDC motors and EC motors developed by CARLYI use a unique high flux and shock absorption design, coupled with high-quality bearings, so that the motor has more torque in the same. CARLYI branded motors have been approved by CCC, ISO9001, CE, RoHS certification.

Packaging & Shipping
Packing and Shiping:
FAQ
FAQ of Capacitor High Static Pressure Electric AC Fan Coil Motor for Central Air-Conditioning:
Q1: Are you factory?
A: Yes, we have been in designing and providing excellent motors for customers. Our factory production is all under ISO9001 quality management system.
Q2: How long you could prepare samples?
A: Normally 3 days if we have the sample in hand. If customized one, about a week around
Q3: How about batch order production?
A: Normally 15-30 days, the customized or newly developed products may take more half month.
Q4: Do you inspect the finished products?
A: Yes, we do inspection according to ISO9001 standard and ruled by our experienced QC staff.
Q5: What advantage do you have?
A: For the motors, we have long enough of 18months guarantee, and for the service, we offer 24 hours technical support and barrier-free communication.

---
