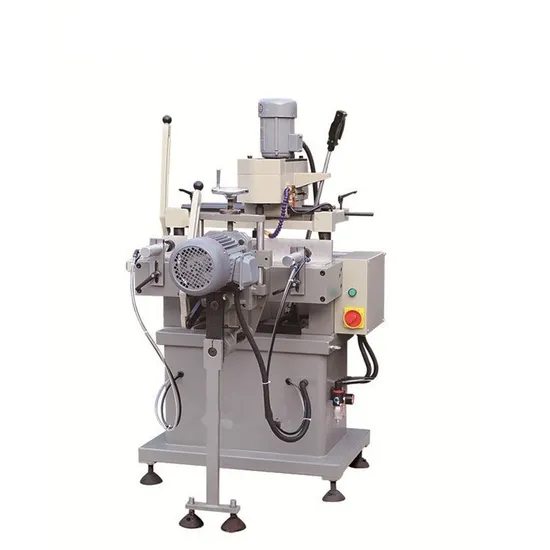

Aluminum Window Hardware Slot Copy Router Lock Hole Milling Machine

Product Description

Aluminum Window Hardware Slot Copy Router Lock Hole Milling Machine
Equipment features:
1.Used for copy-routing processing various kinds of holes,grooves and water-slots.
2.It has features of compact structure and small volume,the air pressure drives the clamping.
3.It can achieve continuous copy-routing milling,easy operation and safety.
Equipment Parameter:

Model	CLZ3F-300*100
Input Power	2.25kw
Air Pressure	0.6~0.8MPa
Power supply	380v/50HZ
Diameter of the three-hole drilling head	12mm
Centers distance of the three-hole drilling head	21.5*21.5mm
Copy-routing range	300*100mm
Cutter Diameter	5/8mm
Overall dimension	1000*1150*1600mm
Weight	260kg

Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and
stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation
training. All of our engineers have passport.
4. If I make PVC window and door, how many basic machines do i need?

---
