Heavy Load 352226X2-2rz, Tarol 130/230e-Tvp, 197726 Railway Locomotive Bearings

Product Description

Heavy Load 352226X2-2rz, Tarol 130/230e-Tvp, 197726 Railway Locomotive Bearings

Bearing Specification :

Model Number	352226X2-2RZ
Part Name	Railway Bearing
Brand	FSK / KBE / SKB / OEM
Material	Bearing Steel
Number of Row	Single Row
Dimensions(mm)(d*D*b)	130mm × 230mm × 150mm
Weight / Mass ( KG )	27.6kg
HS Code	8482800000
Original Country Show	CHINA

Bearings Drawing :

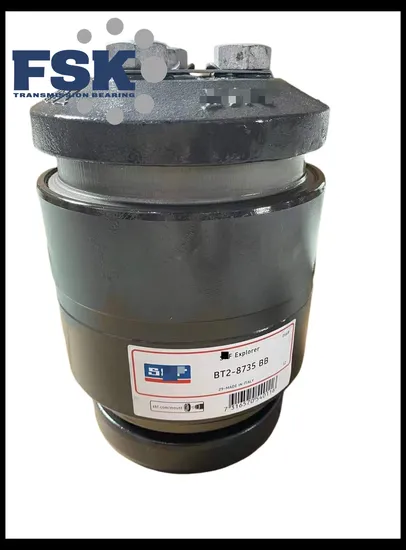

Bearings Detailed Pictures:
Same Series Bearings We Offer:

Class	Bearing Number	id	OD		C	Dynamic Rating @ 500 RPM For 3000 hr L10
				Kt	Outer Race Width
		mm	mm	mm	mm	Radial, C90	Thrust, Ca90
		in.	in.	in.	in.	n	n	K Factor (4)
						lbf	lbf
B (4 1⁄4 x 8)	HM120848 HM120817XD	101.6	165.1	91.3	114.3	120000	31000	2.21
		4	6.5	3.59	4.5	26900	7000
C (5 x 9)	HM124646 HM124618XD	119.062	195.262	108.7	142.875	172000	44500	2.21
		4.6875	7.6875	4.28	5.625	38600	10000
D (5 1⁄2 x 10)	HM127446 HM127415XD	131.75	207.962	113.5	152.4	186000	48500	2.21
		5.187	8.1875	4.47	6	41800	10900
E (6 x 11)	HM129848 HM129814XD	144.45	220.662	120.6	163.512	195000	50700	2.21
		5.687	8.6875	4.75	6.4375	43800	11400
F (6 1⁄2 x 12)	HM133444 HM133416XD	157.15	252.412	136.5	184.15	266000	69000	2.21
		6.187	9.9375	5.38	7.25	59700	15500
G (7 x 12)	HM136948 HM136916XD	177.787	276.225	134.9	185.725	305000	79200	2.21
		6.9995	10.875	5.31	7.312	68600	17800
G (7 x 14)	HM136948 HM136916XD	177.787	276.225	134.9	185.725	305000	79200	2.21
		6.9995	10.875	5.31	7.312	68600	17800
GG (7)	H337846 H337816XD (3)	177.787	301.701	139.7	196.85	388000	132110	1.69
		6.9995	11.878	5.5	7.75	87300	29700
K (8)	M241547 M241513XD	203.2	301.625	108	140.097	266000	86800	1.76
		8	11.875	4.25	5.5156	59700	19500

Railway Bearing	d	D	H	m
TAROL90/154-R-TVP	90 mm	154 mm	115 mm	7.5 KG
TAROL100/165-R-JP	100 mm	165 mm	114.3 mm	9.16 KG
TAROL100/175-R-TVP	100 mm	175 mm	120 mm	10.7 KG
TAROL100/180-R-TVP	100 mm	180 mm	130.2 mm	12.3 KG
TAROL110/180-R-TVP	110 mm	180 mm	142 mm	14 KG
TAROL120/195-R-TVP	120 mm	195 mm	131.4 mm	13.6 KG
TAROL130/210-R-JP	130 mm	210 mm	132 mm	16.7 KG
TAROL130/220-R-TVP	130 mm	220 mm	150 mm	20 KG
TAROL130/230-R-TVP	130 mm	230 mm	160 mm	25.5 KG
TAROL130/240-R-TVP	130 mm	240 mm	160 mm	28.9 KG
TAROL140/220-R-JP	140 mm	220 mm	140 mm	18.5 KG
TAROL150/250-R-TVP	150 mm	250 mm	160 mm	28.9 KG
TAROL160/270-R-TVP	160 mm	270 mm	150 mm	33 KG
TAROL160/280-R-TVP	160 mm	280 mm	180 mm	42 KG
TAROL4-1/4X8-U-JP	101.6 mm	165.1 mm	114.3 mm	14.8 KG
TAROL5X9-U-JP	119.06 mm	195.26 mm	142.9 mm	24.8 KG
TAROL5-1/2X10-U-JP	131.75 mm	207.96 mm	152.4 mm	27.3 KG
TAROL6X11-U-JP	144.45 mm	220.66 mm	163.5 mm	34.9 KG
TAROL6-1/2X9-U-J	157.15 mm	249.87 mm	160 mm	40.7 KG
TAROL6-1/2X12-U-JP	157.15 mm	252.41 mm	184.15 mm	52.9 KG
TAROLGG6-1/2-U-JP	165.09 mm	301.8 mm	196.85 mm	81.4 KG
TAROLGG6-7/8-U-JP	174.61 mm	301.8 mm	196.85 mm	77.3 KG
TAROL7X12-U-JP	177.79 mm	276.23 mm	185.74 mm	60.1 KG

Other Bearings We Offer:

Deep groove ball bearings	Linear ball bearings	Pillow block bearings	Clutch release bearings
Cylindrical roller bearings	Needle roller bearings	Thrust ball bearings	Thrust roller bearings
Spherical roller bearings	Ball joint bearings	Conveyor roller bearings	Angular contact ball bearings

Our Advantage:
About FSK Factory Condition :
FAQ:1.How can I get the bearing price?Mike: You can leave your message on ******, or conact us directly by email, whatsapp, SkYPE, Viber. Tell us your quantity, usually 2-5 hours you will get the price.2.How can I buy them?Mike: You can place order on ******, or pay the payment by Western Union, Paypal, T/T and L/C.3. How long I can get these bearings?Mike: for small order, we will delivery the bearings in 1-2 days after recive your payment. usually 3-5 days will arrive in your place by international express, such as DHL, TNT, UPS and so on. For big order, please contact us.4.How to protect the bearing quality?Mike: All procudts passed ISO9001:2008 and ISO14000 certificates. we can accept small sample order, you can check the quality.5. Other service.Mike: We can offer OEM service according to your demand. FSK Bearing Company Advantages:(1) We have first-class testing equipment to detect bearing various data parameters and control the quality of the bearing.Whenever bearings must first detected whether the quality is qualified and the unqualified bearing will be eliminated directly.So we can get the trust of a large number of customers, and supply them for several years.(2) We have our own R & D capabilities, to help customers solve the problem of non-standard bearings.We can also according to customer requirements change their own mark.(3) Price, our manufacture ensure that our prices across China are quite competitive.It is better for you to compare prices and quality among suppliers.But everyone knows you can not buy the highest quality products with the lowest price,but our product is the best quality if you use equal price. FSK Cooperation DetailsDelivery:For Small weight or ungent ,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking numberFor max production , we will ship by sea/air.Payment Item:TT, 30% deposit , 70% before shippment.L/C At SightPaypal Or Western Union In advanceService:Trade AssurancePayment ProtectionTimely Delivery GuaranteedProduct Qualtity Protection
