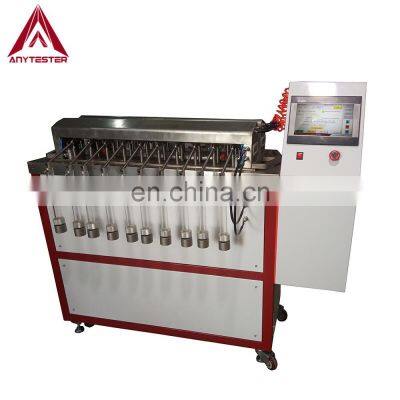

Product DescriptionAT415 Notched Constant Tensile Load Tester is used to evaluate the stress crack resistance of polyolefin geomembranes by notched constant tensile load (NCTL) test. It is mainly applicable to the geomembranes used on the landfill site. Dumbbell-shaped notched test specimens from a polyolefin sheet is subject to a constant tensile load in the presence of a surface-active agent and at an elevated temperature. The time to failure of the test specimen is recorded. The results of a series of such tests conducts at different stress levels are presented by plotting stress level against time for each stress level on a log-log axis. StandardASTM D5397ASTM F2136CJ/T 234 Appendix CNote: For more standards, please contact us.Details★ Touch screen display and PLC control★ Two test methods: Brittleness/Plasticity Judge and Brittleness/Plasticity timingBrittleness/Plasticity Judge: judge whether each test specimen can fails in a specific time or not;Brittleness/Plasticity timing: record the time for each test specimen to fail; ★ Input tensile stress and stress levels, the applied load in g can be automatically calculated and displayed;Interface of inputting Tensile Stress and Stress Level in %Interface of Calculated Load in g★ Adding lead granules into organic glass tube to apply load and weights of 500g or 1000g are also supplied to take the place of lead granules if required load is more than 500g or 1000g; ★ Two metal bars to press all levels to prevent test specimens from loading before testing; Once test begins, two metal bars are released to supply the load onto test specimens;★ The test frame with all levels moves down to the test position in the bath; If the test frame is not on the test position, test can’t be carried out; Test frame on Test Position★ Anti-corrosion cover for the bath to prevent water vapor running away; In this way, the solution concentration will not change as time passes;★ Solution-lacking warm and protection: If solution level does not reach the low water level, there will be a warm on touch screen and test can’t be carried out; ★ With moveable foot, convenient to move the machine; Details & FeaturesModelAT415No. of working positions30 or customizeLoad range200~1370gTube weight196±3gTube bearing weight600gTiming range1s~9999h59min59sTiming accuracy1sTiming deviation1minVolume of bath125LTemperature control rangeRT~80℃Display resolution0.1℃Temperature accuracy±0.5℃Operation temperature10~35℃Heating power3.0kwPower supplyAC220V 50Hz, single phase, 4.5kwDimensions1900×500×1400mm (L×W×H)Weight180kgOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions920mm×1030mm×1750mm(L×W×H)Weight200kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
