Agricultural Machinery 260HP Harvester Soybean/Wheat/Millet/Corn Combine Harvester

Product Description

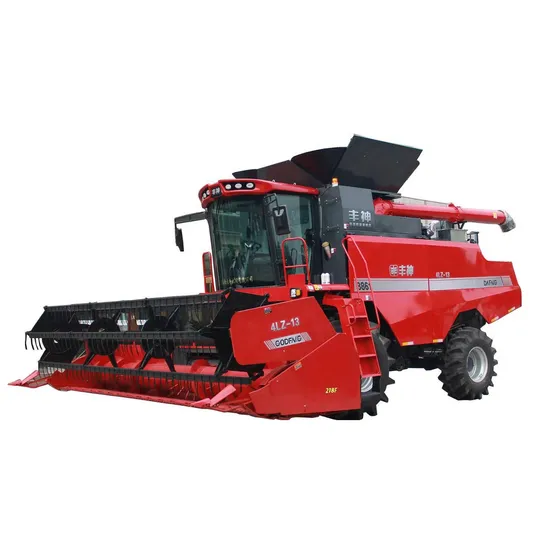

260HP Harvester Soybean/Wheat/Millet/Corn Combine Harvester
Product Description
Self-propelled corn harvester has a compact design, short body, strong maneuverability, small turning radius, convenient U-turn, and high harvesting efficiency; new dynamic periphery, novel design Fashionable, beautiful and practical, and easy to maintain; the original harvesting platform can realize harvesting without rows and adapt to various row spacing and agronomic requirements.
The stable four-wheel drive structure, the front drive adopts hydrostatic drive, and the control is comfortable and convenient; the Jiangling 1000 series front axle + Luoyang Kaichuang heavy-duty four-wheel drive rear axle have strong bearing capacity and good passability.
The heavy-duty high-low shifting roller transmission box is matched with a continuously variable speed disc, and the roller speed can be adjusted adaptively from 300 to 1100. The spherical bearings of the whole vehicle are all made of American Pierre bearings, which have strong bearing capacity and long service life. The transmission belt adopts a black toothed belt, which has strong tension and good heat dissipation. It meets the needs of long-term large-area operations.
Product Parameters

Project	Unit	Parameters
Model	/	4LZ-13
Engine power	PS	Four adjustable operating gears: 260, 240, 220, 160
Cutting width	mm	5400
Feeding amount	kg/s	13
Threshing and separation method	/	Longitudinal flow
Overall dimensions (length × width × height)	mm	9450X5800X3850
Grain bin volume	m³	10
Wheel base	mm	Front 2638/Rear 2600
Wheelbase	mm	3305
Operation efficiency	Hm²/h	0.6-1.5
Operation speed	(km/h)	1.6-9.8
Drive mode		Four-wheel drive
Speed transmission structure		Mechanical gearbox + hydrostatic stepless speed change
Machine weight	kg	12500
Unloading height	mm	4750
Front wheel drive wheel tire		28L-26
Rear wheel guide wheel tire		19.5L-24
Gearbox gear		Four gears
Crops that can be harvested		Soybeans, wheat, millet replacing the corn header can harvest 6 rows of corn kernels

Detailed Photos
