TAM-Z4 Hot Sale Plastic Thin Sheet Clean Room Screen Printing Machines

Product Details

Product Description

Product Description
Product Description
Basic Info.
TAM-Z4 Hot Sale Plastic Thin Sheet Clean Room Screen Printing Machines
Advantages:
1, Electric printing runs smoothly, High precision printing;
2, Cold light source , Drying sheet is not deformed;
3, Energy saving and environmental protection, Suitable for clean room(dust-free workshop).
Technical Parameter:

TM-D5070 electric vertical screen printer
Power	380V 3phase or single-phase 220V
Lifting drive motor	Z=1.5KW
Printing drive motor	X=200w
Printing area	500X700mm
Table size	600X800mm
Max frame	750X920mm
Printing thickness	0~ 50mm
Overlay accuracy	0.05~0.08mm
Platform precision	About +/-0.06mm
Printing pressure	4.0-8.0 kgf/cm2
Air pressure (squeegee and ink return scraper)	0.5~0.6(Mpa)
Air consumption	35L/min
Printing speed	800pcs/h
Dimensions (LXWXH)	1330mmX1000mmX1750mm
Weight	420kg
Consumable	Squeegee, Aluminium Screen Frame,Silk screen mesh cloth, ink
TM-LED800 film LED UV tunnel dryer
Power supply	single-phase 220V 50HZ 1.6kw
Irradiation width	800mm Teflon Belt
Cooling system	water-cooled system
Water-cooled machine size:	470 mm * 260 mm * 260 mm
Machine Dimensions (LXWXH)	2m1m1.1m
Weight	220KG
The light measurement range of values	1000-9500mJ / cm2
Led	395 nm (2800 mw/cm2~3600 mw/cm2)

Plate Type: Screen Printer
Condition: New
Place of Origin: Shenzhen, China (Mainland)
Brand Name: Tamprinter
Model Number: TAM-Z4
Application Scope:
machine for printing plastic sheet (polycarbonate, ABS, PET, PS), paper sheet, package ,nameplate ,colorful glittering glass ,Light Guide Plate , lens ,Membrane switch,EL panels printing etc.
Automatic Grade: Semi Automatic
Color & Page: Single Color
Warranty: screen printer 18 months, led uv machine 24months
After-sales Service Provided: Engineers available to service machinery overseas
Packaging: plywood
Delivery Detail: 20 workdays after payment
Performance & Features:

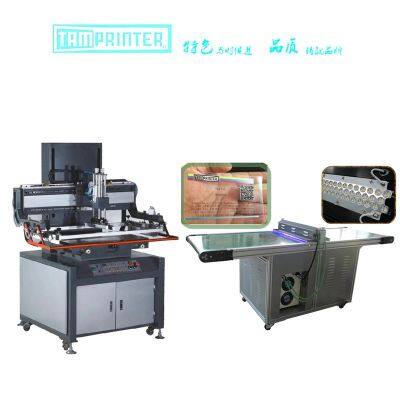

1. This line is composed of vertical screen printer(Up-Down, Left-Right, Electric; squeegee and ink return scraper pneumatic), water-cooled system LED UV tunnel dryer.
2. It is a semi automatic production line which upload and download manual.
2.1 screen printing machine Features:
2.1.1.Printing transmission is driven by the electric motor, synchronous belt drive.
2.1.2.Action sensitive, speed can be adjusted. Machine up and down is driven by the electric motor, frequency control. Smooth operation.
2.1.3.Scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
2.1.4.Vacuum adsorption worktable.
2.1.5.The working table has a vernier regulation system (can move left and right, forward and backward)that makes registration more correctly and simply.
2.1.6.With security devices to make the head printing stop on the upper position that is more reliable and safer.
2.1.7.The electronic control unit(ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain
2.2. UV LED advantages
2.2.1, long life: life is a traditional mercury lamp of type of curing machine more than 10 times, about 25000-30000 hours.
2.2.2, cold light source, no radiation, according to the product surface of low temperature, heat damage to solve the long existing in optical communication, LCD production problems. Especially suitable for LCD sealing side requiring small temperature, film printing and so on.
2.2.3, calorific value is small, can solve the great calorific value of mercury lamp spray equipment and personnel intolerable.
2.2.4, instant light, do not need to preheat immediately reached 100% uv output power.
2.2.5, life is not affected by the number of open and close.
2.2.6, high energy, light output stability, uniform irradiation effect is good, improve production efficiency.
2.2.7, can be customized effective radiation area, from 20 mm to 1000 mm in length.
2.2.8, do not contain mercury, also won't produce ozone, replacement of traditional light source technology is a safer, more environmentally friendly option.
2.2.9, low energy consumption, power consumption is only 10% of the traditional mercury lamp type curing press, can save 90% energy.
2.2.10, maintenance cost is almost zero, use UVLED curing equipment to save at least 10000 yuan a year/material fee.
Welcome to contact us if you have any question!
